Background technique:

The wood cutting alignment laser module set is a common machine, and the wood cutting machine used now often has inaccurate positioning during use, and the wood after cutting cannot meet the cutting standard; it is easy to cause cutting errors.
Technical implementation elements:
The purpose of the present invention is to provide a woodworking laser positioning and cutting device, which solves the problem of low cutting accuracy of a wood cutting machine.
In order to solve the above-mentioned technical problems, the utility model adopts the following technical solutions:
 A Wood Cutting Alignment Laser Module Test, including the machine body, the feeding conveyor belt, the discharging conveyor belt, the pulley, the slide rail, the cutter, the cutting frame, the cutting frame base, the supporting beam, the side guard, the board clamp, the telescopic rod a , telescopic rod b, support column a, pulley, saw blade, cutter slide rail, cutter support frame, laser positioner a, laser positioner b; the front of the body is provided with a feeding conveyor belt; the two sides of the body are provided with slide rails The slide rail is provided with a pulley; the upper part of the pulley is provided with a cutter support frame; the Wood Cutting Alignment Laser Module Tool support frame is provided with a cutter; the cutter is provided with a saw blade; the front of the cutter support frame is respectively provided with a laser Positioner a and laser positioner b; a cutting frame is arranged under the cutter support frame; Wood Cutting Alignment Laser Module Types is arranged on the base of the cutting frame; the base of the cutting frame is arranged on the body; the cutting frame is arranged with support beams; Side guards are arranged on both sides of the cutting frame.

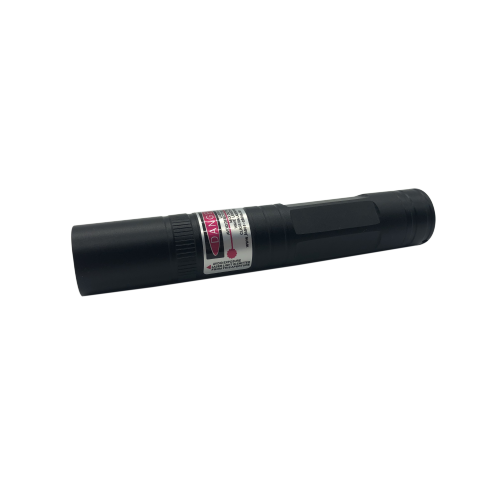

Model	DSL6325LH20120
Beam Shape	Line
Wavelength	635nm
Wavelength Error	±5nm
Laser Power	15mW 25mW
Fan angle	110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	Yes
Working Distance	5-10m
Power Supply	12-24V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ20mm*120mm
Weight	140g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

Product Dimensions
