Laser processing is one of the non-contact advanced processing technologies based on thermal energy. The wood cutting alignment laser module near me has the advantages of fast processing speed, small material deformation, low processing noise, small cutting seam, high efficiency and high precision, which is conducive to the realization of digital processing. As a result, Wood Cutting Alignment Laser Module Options has been called the "21st Century Universal Machining Tool" for various engineered material processing fields. At present, laser processing has been widely studied and applied in the fields of metal, ceramics, plastic products and wood processing. Domestic wood resources are relatively scarce, especially precious wood resources. Facing the growing demand for wood, how to improve the comprehensive utilization rate of wood and increase the added value of products has become an important issue in wood processing and manufacturing. The use of advanced laser processing and manufacturing technology can improve the yield of processed products, and the Wood Cutting Alignment Laser Module Project can improve the surface adhesion and finishing performance after processing, which is of great significance to alleviate the contradiction between the supply and demand of wood resources and the growth of demand, and improve processing. Quality of products.

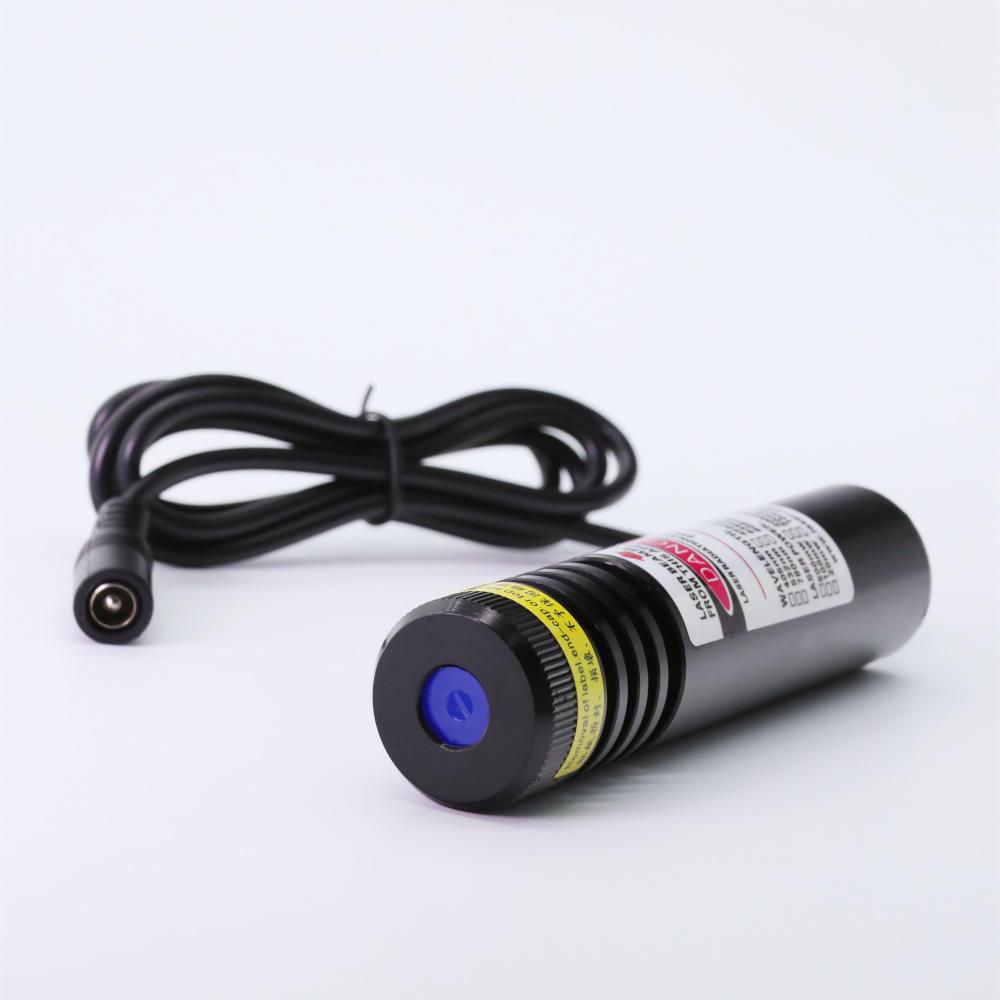

Model	DSL6325LH20120
Beam Shape	Line
Wavelength	635nm
Wavelength Error	±5nm
Laser Power	15mW 25mW
Fan angle	110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	Yes
Working Distance	5-10m
Power Supply	12-24V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ20mm*120mm
Weight	140g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

Product Dimensions
