Technical implementation elements:

1. The purpose of this utility model is to provide a woodworking laser positioning and cutting device, which solves the problem that the cutting accuracy of the wood cutting alignment laser module label is not high.
2. for solving the above-mentioned technical problems, the utility model adopts the following technical solutions:
3. A Wood Cutting Alignment Laser Module Light device, including a machine body, a feeding conveyor belt, a discharging conveyor belt, a pulley, a slide rail, a cutter, a cutting frame, a cutting frame base, a support beam, a side guard, a board clamp, and a telescopic rod a, telescopic rod b, support column a, pulley, saw blade, cutter slide rail, cutter support frame, laser locator a, laser locator b; the front of the body is provided with a feeding conveyor belt; both sides of the body are provided with sliding The slide rail is provided with a trolley; the upper part of the trolley is provided with a cutter support frame; the cutter support frame is provided with a cutter; the Wood Cutting Alignment Laser Module Manual is provided with a saw blade; Laser positioner a and laser positioner b; a cutting frame is arranged under the cutter support frame; the cutting frame is arranged on the cutting frame base; the cutting frame base is arranged on the body; the Wood Cutting Alignment Laser Module Map frame is arranged with supports arranged on the Beam; side guards are arranged on both sides of the cutting frame.

Applications: Bridge saw machine positioning，Machining positioning

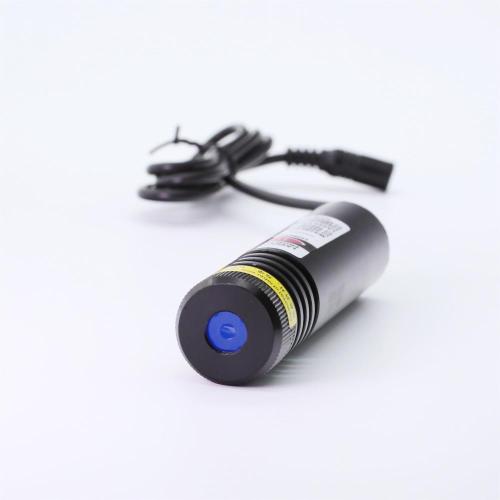

Model	DSL6325LH20120
Beam Shape	Line
Wavelength	635nm
Wavelength Error	±5nm
Laser Power	15mW 25mW
Fan angle	110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	Yes
Working Distance	5-10m
Power Supply	12-24V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ20mm*120mm
Weight	140g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

Product Dimensions
