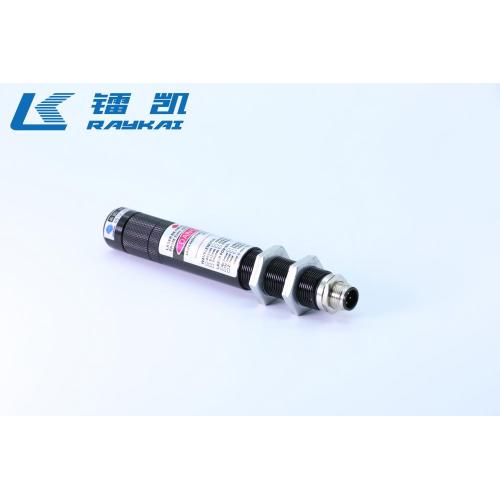

Customized Screw Body Linear Laser
- Min. Order:
- 30 Piece/Pieces
- Min. Order:
- 30 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express, Others
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000 Piece/Pieces per Month |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,EXW |
| Certificate: | CE/FDA/ROHS |
| HS Code: | 9013200099 |
| Transportation: | Ocean,Air,Land,Express,Others |
| Port: | shanghai |
Description:
It is a widely used industrial laser module. The straightness can reach ≤0.1% and the fan angle can reach 120°. DS2290 is a positioning laser module providing both green and red light. Working voltage, electrical connection, and output power can be customized according to customers’ requests.
Applications: Bridge saw machine positioning，Machining positioning
Specification:
Model
DSL6325LH20120
Beam Shape
Line
Wavelength
635nm
Wavelength Error
±5nm
Laser Power
15mW 25mW
Fan angle
110°
Line Thickness
<1mm
Straightness
≤0.1%
Focusable
Yes
Working Distance
5-10m
Power Supply
12-24V
Drive Mode
CW/TTL
Protection
Anti-reverse, Anti-interference
Shell Material
Aluminum
Operation Temperature
-10~50℃
Dimension(D*L)
Φ20mm*120mm
Weight
140g
| Model | DSL6325LH20120 |
| Beam Shape | Line |
| Wavelength | 635nm |
| Wavelength Error | ±5nm |
| Laser Power | 15mW 25mW |
| Fan angle | 110° |
| Line Thickness | <1mm |
| Straightness | ≤0.1% |
| Focusable | Yes |
| Working Distance | 5-10m |
| Power Supply | 12-24V |
| Drive Mode | CW/TTL |
| Protection | Anti-reverse, Anti-interference |
| Shell Material | Aluminum |
| Operation Temperature | -10~50℃ |
| Dimension(D*L) | Φ20mm*120mm |
| Weight | 140g |
Notice
Laser connection can be customized.
eg. red and black wires, black cable with DC connector, M12 connector, JST connector and etc.
Product Dimensions
