Description:

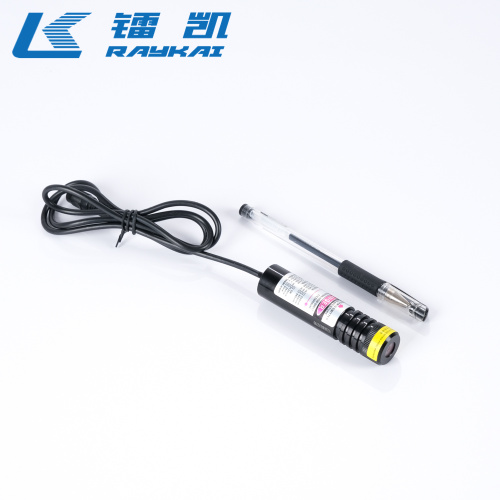

The laser is waterproof and dustproof. It’s  anti-reverse and anti-interference. Its fan angle is 120°, straightness can reach ≤0.1% and focus is fixed.

It is a widely used industrial laser module. The straightness can reach ≤0.1% and the fan angle can reach 120°. DS2290 is a positioning laser module providing both green and red light. Working voltage, electrical connection, and output power can be customized according to customers’ requests.

Applications: Bridge saw machine positioning，Machining positioning

Specification:

Model	DSL66100LH2290
Beam Shape	Line
Wavelength	660nm
Wavelength Error	±5nm
Laser Power	100mW
Fan angle	110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	No
Working Distance	5-10m
Power Supply	5V/12-24V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ22mm*90mm
Weight	96.3

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

Product Dimensions
