Description:

Measurement principle and advantages of wheel alignment laser module project:

The four target reflectors are installed on the four rims of the vehicle, and the wheels are rolled. The geometric figures on the target reflectors are continuously photographed by the camera, and the changes of the geometric figures are analyzed and calculated by the computer to obtain the corresponding positioning parameters of the wheels and chassis, which are displayed by the display screen. This technology mainly uses the basic principle of physical perspective and computer information processing technology. This section describes the measuring principle and advantages of the Wheel Alignment Laser Module.

Truck Wheel Alignment Laser has higher precision and more powerful function

1. Its precision can be accurate to 0.1mm/0.01°.

2. Besides all the traditional parameters, it can also measure the parameters of wheel deviation and equal distance of wheel deviation, which can easily realize many functions that cannot be completed by CCD and Laser locator. Such as single wheel positioning, front bundle locking measurement, air suspension vehicle positioning.

Specification:

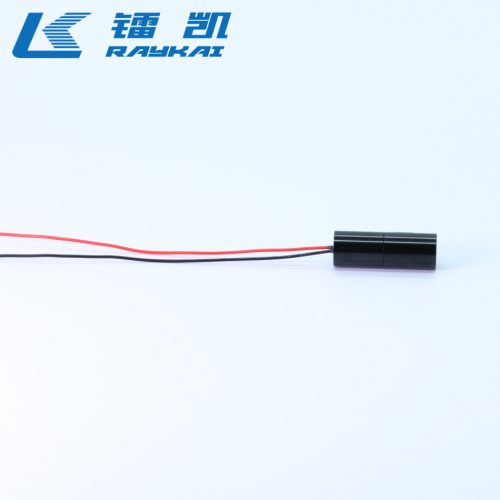

MODEL	DSL
WAVELENGTH	520/635/650/660nm
WAVELENGTH ERROR	±5nm
BEAM SHAPE	Line
OUTPUT POWER	10mW (customized)
FAN ANGLE	10°
FOCUSABLE	Focus fixed
POWER SUPPLY	3-5V
DRIVE MODE	CW/TTL
PROTECTION	Anti-reverse, Anti-interference
WORKING TEMPERATURE	-10~50℃
STORAGE TEMPERATURE	-40~80℃
HUMIDITY	＜90%
DIMENSION	Φ12mm*45mm
WEIGHT	21g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.
