Description:

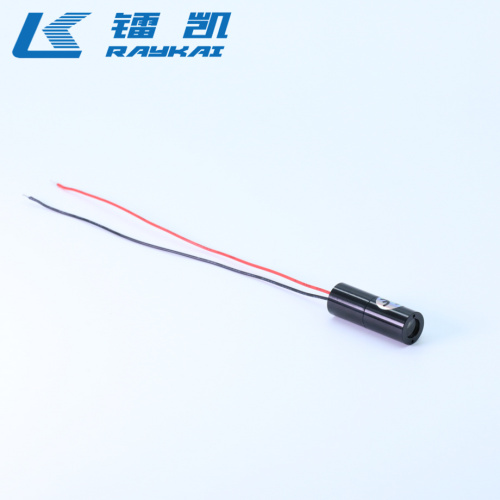

wheel alignment laser module equipment
The laser marking device for industrial tire building machine realizes spatial positioning during the radial tire building process
equipment that replaces multiple sets of fixed semiconductor laser markers with mobile beacons to form tires
The process provides precise positioning standards, and the Wheel Alignment Laser Module improves the accuracy and efficiency of re-calibration after tire parameter replacement, making the overall operation more reasonable and complete.
Our company faces the domestic and foreign laser and optoelectronic markets, focusing on the application field of semiconductor lasers.
It has successively developed hundreds of products in several categories such as point light sources, line light sources, and Shizi light sources. midpoint
Shaped laser positioning lights are mainly used in laser four-wheel aligners and tire building machines. Truck Wheel Alignment Laser mainly gives instructions
role of positioning. Packing Machine Alignment Laser Module laser light source enables long service life and stable
The quality is high, the die adopts the semiconductor laser diode imported from Japan, and the built-in circuit board is excellent.
Effectively guarantee the stability and service life of the product.

Specification:

MODEL	DSL
WAVELENGTH	520/635/650/660nm
WAVELENGTH ERROR	±5nm
BEAM SHAPE	Line
OUTPUT POWER	10mW (customized)
FAN ANGLE	10°
FOCUSABLE	Focus fixed
POWER SUPPLY	3-5V
DRIVE MODE	CW/TTL
PROTECTION	Anti-reverse, Anti-interference
WORKING TEMPERATURE	-10~50℃
STORAGE TEMPERATURE	-40~80℃
HUMIDITY	＜90%
DIMENSION	Φ12mm*45mm
WEIGHT	21g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.
