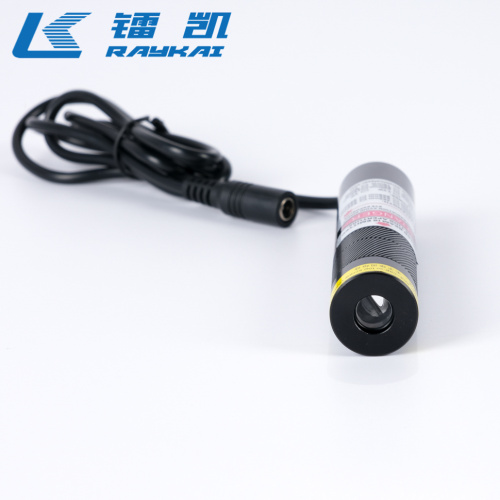

Description:

This model is standard industrial laser module compatible with point, line, cross and DOE projections. Its focal length is adjustable, and maximum power is 500mw.

DS2090 is a well-proven model a outstanding positioning tool. The focal length is adjustable. When used at a further distance, the line width of the light thickness can be adjusted to perform the best.

Applications: Rip saw positioning，Single saw positioning，Multi saw positioning，Cutting table positioning，Cloth paving machine positioning, Tailoring positioning, Tire building machine positioning...

Specification:

Model	DSL6505LH2090S
Beam Shape	Line
Wavelength	650nm
Wavelength Error	±5nm
Laser Power	5mW
Fan angle	30° 110°
Line Thickness	<1mm
Straightness	≤0.1%
Focusable	Yes
Working Distance	1-2m
Power Supply	5V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ20mm*90mm
Weight	84.5

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector,  M12 connector, JST connector and etc.

Product Dimensions

Field Application:

Printing machine marking，Sew Machinery positioning,  and so on...
