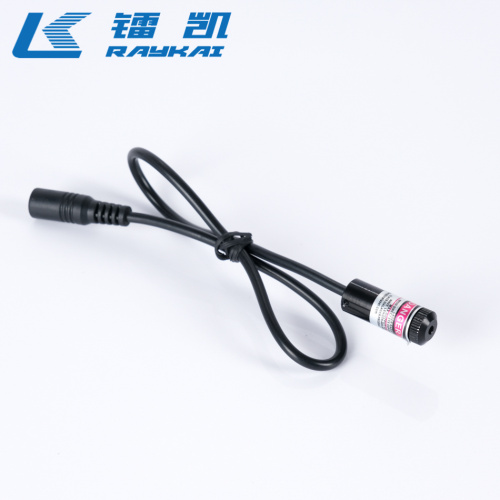

650nm 5mw Laser Diode Modules Red Dot
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express, Others
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000 Piece/Pieces per Month |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,EXW |
| Certificate: | CE/FDA/ROHS |
| HS Code: | 9013200099 |
| Transportation: | Ocean,Air,Land,Express,Others |
| Port: | shanghai |
Description:
This laser lamp is commonly used in sewing machine positioning, like button attaching machine, embroidery machine.
Red point laser generator provides an ideal point positioning solution where high visible dots are projected onto the surface. This 635-650nm red dot laser module provides the most accurate positioning in a close working distance. This highest precision industrial calibrated laser delivers maximum visibility in all lighting conditions.
Specification:
| Model | DSP6505LH1232 |
| Beam Shape | Dot |
| Wavelength | 650nm |
| Wavelength Error | ±5nm |
| Laser Power | 5mW |
| Focusable | Yes |
| Power Supply | 3-5V |
| Drive Mode | CW/TTL |
| Protection | Anti-reverse, Anti-interference |
| Shell Material | Aluminum |
| Operation Temperature | -10~50℃ |
| Dimension(D*L) | Φ12mm*32mm |
| Weight | 21g |
Notice
Laser connection can be customized.
eg. red and black wires, black cable with DC connector, M12 connector, JST connector and etc.
Product Dimensions
Field Application:
Printing machine marking，Sew Machinery positioning, and so on...
