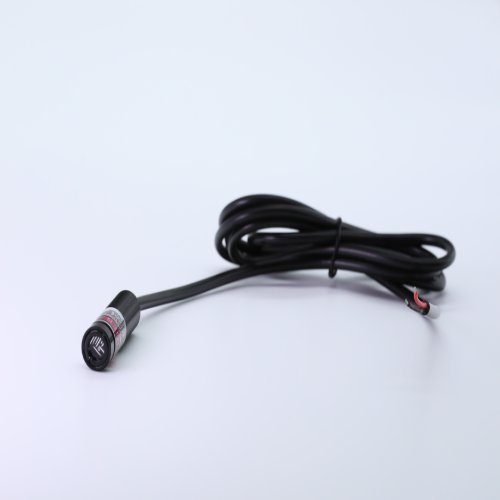

635nm 10mW Focusable Red Line Laser Module
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express, Others
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000 Piece/Pieces per Month |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,EXW |
| Certificate: | CE/FDA/ROHS |
| HS Code: | 9013200099 |
| Transportation: | Ocean,Air,Land,Express,Others |
| Port: | shanghai |
Description:
This model is widely used in placket machines, bag openers, machine positioning, packaging machinery, and etc. This standard laser module is compatible with line, cross and DOE projections.
The DS1245 laser module is equipped with an imported laser diode, and self-developed high-performance control circuit and optical lens are well matched. The laser generates a reliable line light applicable for various industrial aligment and positioning. The focal length is adjustable, and it is widely used in sewing, packaging and other industries.
Specification:
| Model | DSL6310LH1245 |
| Beam Shape | Line |
| Wavelength | 635nm |
| Wavelength Error | ±5nm |
| Laser Power | 10mW |
| Fan angle | 60° 110° |
| Line Thickness | <1mm |
| Straightness | ≤0.1% |
| Focusable | Yes |
| Working Distance | 2-3m |
| Power Supply | 3-5V/12-24V |
| Drive Mode | CW/TTL |
| Protection | Anti-reverse, Anti-interference |
| Shell Material | Aluminum |
| Operation Temperature | -10~50℃ |
| Dimension(D*L) | Φ12mm*45mm |
| Weight | 21.6g |
Notice
Laser connection can be customized.
eg. red and black wires, black cable with DC connector, M12 connector, JST connector and etc.
Product Dimensions
Field Application:
Placket machine，
Bag opening machine，
Machinery positioning，
Needle&thread/ Printing machine，
Packaging machinery and so on...
