Red Line Laser Module For Marking
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Transportation:
- Ocean, Air, Land, Express, Others
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000 Piece/Pieces per Month |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,EXW |
| Certificate: | CE/FDA/ROHS |
| HS Code: | 9013200099 |
| Transportation: | Ocean,Air,Land,Express,Others |
| Port: | shanghai |
Description:
This laser is commonly used in brick kiln factory for line positioning. It’s anti-reverse, and anti-interference and is suitable for use within 3 meters.
In the field of positioning and marking, the laser line is clearly marking and easy to identify, which greatly improves work efficiency. Reliable quality, stable performance and long service life are the advantages of this model, making it suitable for a variety of work environments.
Specification:
| Model | DSL6505LH1680 |
| Beam Shape | Line |
| Wavelength | 650nm |
| Wavelength Error | ±5nm |
| Laser Power | 5mW |
| Fan angle | 110° |
| Line Thickness | <1mm |
| Straightness | ≤0.1% |
| Focusable | No |
| Working Distance | 1-2m |
| Power Supply | 3-5V/12-24V |
| Drive Mode | CW/TTL |
| Protection | Anti-reverse, Anti-interference |
| Shell Material | Aluminum |
| Operation Temperature | -10~50℃ |
| Dimension(D*L) | Φ16mm*80mm |
| Weight | 57.9g |
Notice
Laser connection can be customized.
eg. red and black wires, black cable with DC connector, M12 connector, JST connector and etc.

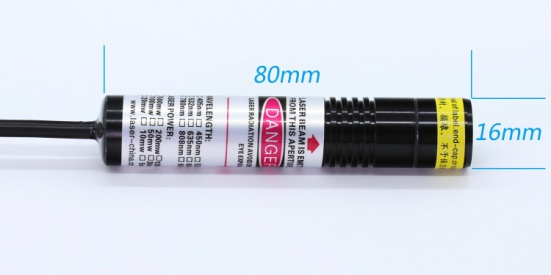

Product Dimensions
Field Application:
Placket machine，
Bag opening machine，
Machinery positioning，
Needle&thread/ Printing machine，
Packaging machinery and so on...
