Product Description

This model is widely used in placket machines, bag openers, machine positioning, packaging machinery, and etc. This standard laser module is compatible with line, cross and DOE projections.

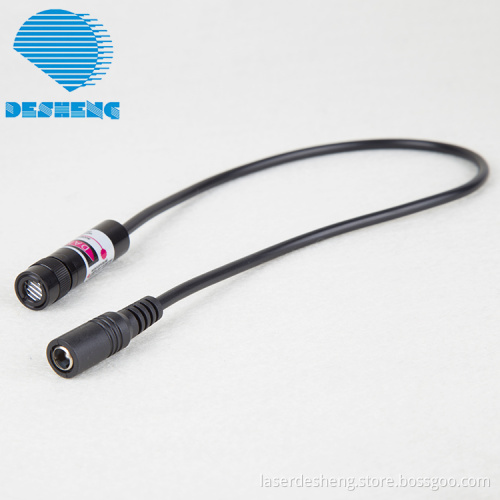

The DS1245 laser module is equipped with an imported laser diode, and self-developed high-performance control circuit and optical lens are well matched. The focal length is adjustable, and it is widely used in sewing, packaging and other industries.

Applications: Placket machine，Bag opening machine，Machinery positioning，Needle&thread/ Printing machine，Packaging machinery

Output power10 mW small red line laser module 10mw diode

SEMICONDUCTOR LASERS
BRAND	DESHENG	MODEL	DSL/C6501/10-1245(RED)
			DSL/C5201/30-1245(GREEN)
LASER DIODE	ROHM , PANASONIC, SHARP , QSI, MITSUBISHI, OSRAM	WAVE LENGTH	650 nm(RED)
			520 nm(GREEN)
WAVE BAND	Visible	OUTPUT POWER	1-10 mW(RED)≤30 mW (GREEN)
			(customized)
POWER SUPPLY	3~5 V	WORKING CURRENT	≤ 40 mA(RED)
	12~24 V		≤ 200 mA(GREEN)
MODE	Line/Cross	FAN ANGLE	10-120°
OPTICAL PART	Dot/Cross wave lens	LENS MATERIALS	High quality glass lens
BODY MATERIALS	Aviation Aluminum	LIGHT CONTROL	Focus adjustable
WORKING TEMPERATURE	-10~50 ℃(RED)	STORAGE TEMPERATURE	-40~80 ℃(RED)
	-20~60 ℃(GREEN)		-40~85 ℃(GREEN)
LIFE	Seiko level > 10000 hours
DIMENSION	Ø12 mm x 45 mm
STRUCTURE FEATURES	Aviation Aluminum body +Imported laser diode +high quality lens +PCB +Wire
