infrared laser module dot beam

$6.00

300-999 Piece/Pieces
$5.50

≥1000 Piece/Pieces

Transportation:: Ocean, Air, Land, Express

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	10000 Piece/Pieces per Month
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	CE/FDA/ROHS
HS Code:	9013200099
Transportation:	Ocean,Air,Land,Express
Port:	shanghai

Product Description

Description:

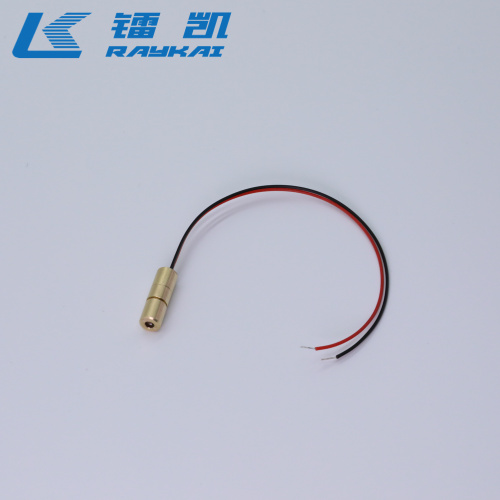

The Infrared laser diode module is compact in size measuring 6.5mm long x 10mm diameter. offers a cost effective solution, to many industrial applications such as alignment and positioning.

Min laser diode module provides a precise dot light, it can be of green, red, and infrared wavelengths.

Other parameters can also be customized according to customer requirements, which are laser module size, working voltage, output power, and electrical connection.

Feature:

1/ Alignment Laser Module

2/ Manually Focusing the Dot

3/ Compact Size Design

4/ Brass Material For Better Heat Dissipation

5/ This Min laser diode module complies with European standards CE and FDA regulations.

Specification:

Model	DS
Beam Shape	Dot
Wavelength	980nm
Wavelength Error	±5nm
Laser Power	200mW
Focusable	Yes
Power Supply	3-5V
Drive Mode	CW/TTL
Shell Material	Copper
Operation Temperature	-10~50℃
Dimension(D*L)	Φ6mm*18mm
Weight	2.2g
