650nm Red Dot Laser Diode Module

$4.50

300-999 Piece/Pieces
$3.50

≥1000 Piece/Pieces

Transportation:: Ocean, Air, Land, Express

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	10000 Piece/Pieces per Month
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	CE/FDA/ROHS
HS Code:	9013200099
Transportation:	Ocean,Air,Land,Express
Port:	shanghai

Product Description

Description:

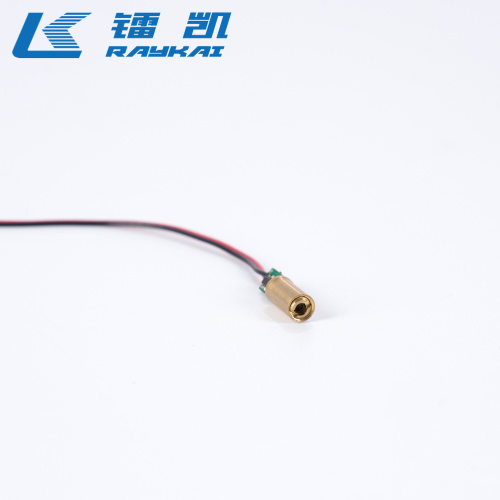

The DS0408 series is the smallest mini laser module available today and is widely used in machine equipment for alignment and positioning. Our mini laser modules are semiconductor lasers of small size, low power consumption, and low cost.

Feature:

-smallest focusable point laser（4mm diameter）,

-uniform light distribution of focusable red (650nm) point

-tiny laser of smallest diameter at 4mm. Spot size adjustable, and power range available between 0.1 and 5mW.

Specification:

Model	DSP6505T0408
Beam Shape	Dot
Wavelength	650nm
Wavelength Error	±5nm
Laser Power	5mW
Focusable	Yes
Power Supply	3-5V
Drive Mode	CW/TTL
Shell Material	Copper
Operation Temperature	-10~50℃
Dimension(D*L)	Φ4mm*8mm
Weight	2.2g
