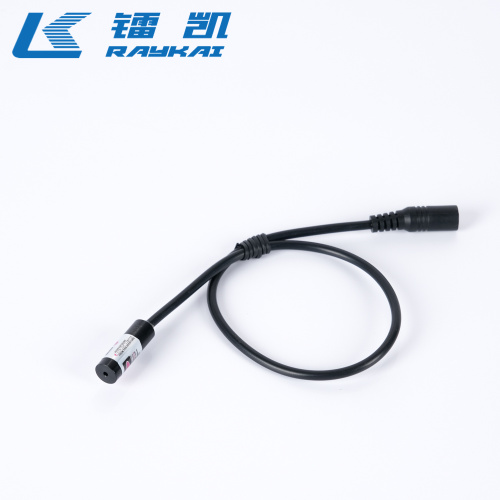

Red Dot 650nm Laser Module

Get Latest Price

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10000 pcs/M
Payment Type:	T/T
Incoterm:	EXW,Express Delivery
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai

Product Description

The laser diameter is 10mm. Its maximum power is 10mw and material is black aviation aluminum. The focal length is adjustable.

-The laser is of small size and good performance.

-Output power is flexible from 0.5 to 10mw.

-Focusing dot is adjustable.

-Parameters can be customized according to customer requirements, which are laser module size, working voltage, output power, and electrical connection.

-This product is our standard product.

Product Parameters

Model	DSP6505LH1030
Beam Shape	Dot
Wavelength	650nm
Wavelength Error	±5nm
Laser Power	5mW
Focusable	Yes
Power Supply	3-5V
Drive Mode	CW/TTL
Protection	Anti-reverse, Anti-interference
Shell Material	Aluminum
Operation Temperature	-10~50℃
Dimension(D*L)	Φ10mm*30mm
Weight	21g
