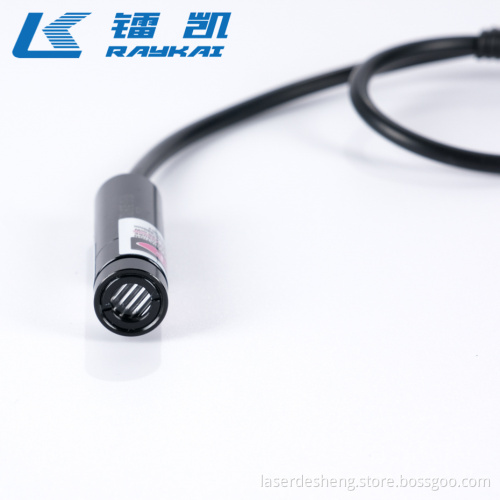

Green Cross Dot Laser Marking Module

Get Latest Price

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Transportation:: Ocean, Express, Air, Others

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB,CFR,EXW,FCA,Express Delivery
Transportation:	Ocean,Express,Air,Others
Port:	Shanghai

Product Description

Product Description:

This industrial laser is designed of specified parameters. This laser can be used for long-distance pointing. It’s manually focusable and the laser is of black aviation aluminum case.

In the field of positioning and marking, the laser line is clearly marking and easy to identify, which greatly improves work efficiency. Reliable quality, stable performance and long service life are the advantages of this model, making it suitable for a variety of work environments.

Product Parameters:

MODEL DSC52-LH1245

WAVELENGTH 520nm

WAVELENGTH ERROR ±5nm

BEAM SHAPE Cross

OUTPUT POWER 50mW

FAN ANGLE 5-110°

LINE THICKNESS <1mm

STRAIGHTNESS ≤0.1%

FOCUSABLE Focusadjustable

WORKING DISTANCE 3-5m

POWER SUPPLY 5V

DRIVE MODE CW/TTL

PROTECTION Anti-reverse, Anti-interference

WORKING TEMPERATURE -10~50℃

STORAGE TEMPERATURE -40~80℃

HUMIDITY ＜90%

DIMENSION Φ12mm*45mm

WEIGHT 21.6g

Notice

Laser connection can be customized.

eg. red and black wires, black cable with DC connector, M12 connector, JST connector and etc.

Send your message to this supplier

* From:
* To:

Mr. Chen xidong
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Laser For Marking Machine , Cross Laser Marking Module , Laser Marking Module

MODEL	DSC52-LH1245
WAVELENGTH	520nm
WAVELENGTH ERROR	±5nm
BEAM SHAPE	Cross
OUTPUT POWER	50mW
FAN ANGLE	5-110°
LINE THICKNESS	<1mm
STRAIGHTNESS	≤0.1%
FOCUSABLE	Focusadjustable
WORKING DISTANCE	3-5m
POWER SUPPLY	5V
DRIVE MODE	CW/TTL
PROTECTION	Anti-reverse, Anti-interference
WORKING TEMPERATURE	-10~50℃
STORAGE TEMPERATURE	-40~80℃
HUMIDITY	＜90%
DIMENSION	Φ12mm*45mm
WEIGHT	21.6g
