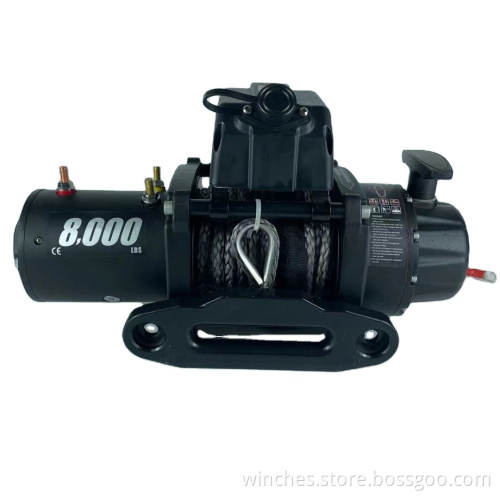

DAO 8000lbs 4 WD Truck winches 12 v for sale treuil
Designed with your safety in mind, this 8000 Lbs electric winches feature dynamic braking of
the winch drum so you’ll have the stopping power you need for each job.
Accompanied by the heavy-duty clevis hook and handy strap, this compact and
lightweight tool is anything when it comes to power. Offering much more than a motor
and a spool of rope, Electric car winch Kit is a necessary tool for any
situation you might encounter. Our mini truck electric
winch will back up your purchase with a 1-year
limited warranty and FREE lifetime technical support.
|
Product name
|
8000lbs/ 3 ton wireless electric winch 12 V OEM for tow truck
|
|
Manufacturer Part Number:
|
D26555-8000A
|
|
Brand:
|
DAO
|
|
Drum Size:
|
Diameter 2.52" × Lenght5.3" (64mm × 135mm)
|
|
Cable:
|
82ft of 3/8"± diameter（25 m of 10mm diameter）
|
|
Overall Dimensions(（L×W×H）):
|
25.2"×14.6"×10.2"（640mm × 370mm × 260mm）
|
|
Recommended Battery:
|
650CCA Minimum for Winching
|
|
Battery Leader:
|
2 gauge,72"(1.83m)
|
|
Motor:
|
6.1HP/4.5KW, series wound
|
|
Finish:
|
Black/Orange
|
|
Control:
|
Remote switch,11.8ft(3.6m)lead
|
|
Gear Train:
|
3 Stage planetary
|
|
G.W:
|
36KG
|
|
Gear Ratio:
|
216/1
|
|
Mounting Bolt Pattern:
|
10.00±0.015" × 4.50±0.010" (165mm × 114.3mm)
|
|
Clutch:
|
Sliding Ring Gear
|
|
Remote Control:
|
Include
|
|
Brake:
|
Mechanical brake
|
|
Performance:
|
12VDC
|
|
Fairlead:
|
Aluminum Hawse Fairlead/4-way Roller Fairlead
|
|
Rated Line Pull:
|
8000LBS
|
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
