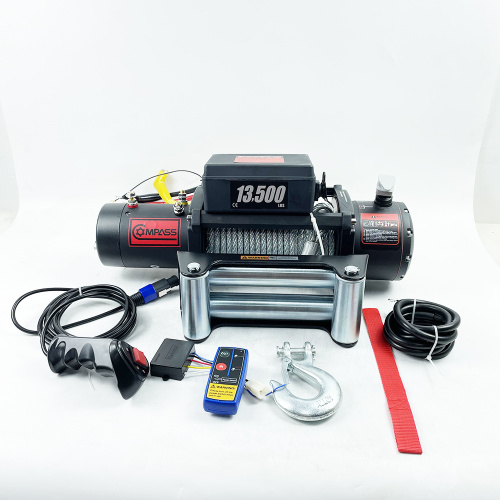

High Quality OEM 12v Cable Winch
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/month |
| Supply Ability: | 2000 Piece/Pieces per Week |
| Payment Type: | L/C,D/P,D/A,T/T,MoneyGram |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Certificate: | CE |
| HS Code: | 8425319000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shanghai |
Powerful Electric Motor: 13500 lb pulling capacity combined with upgraded gear system provides super-fast line speed, it will help you recover your vehicle in no time
IP67 Waterproof: Crossing rivers? Your Compass winch is IP67 rated, it will accompany you from icy river to knee-deep mud
Independent Brake Design: Fully automatic and independent brake design ensures the safety of you and your vehicle
Detachable Control Box: Mount your control box in different locations as you need (winch top mounting plate is available in Compass store)
3/8 inch * 85 ft Synthetic Rope: Rope made of ultra-high-molecular-weight polyethylene, providing maximum breaking strength
13500 Lbs Electric Winch Sepcifications
- Motor: 6.5HP/4.8KW, series wound
- Gear Train: 3 Stage planetary
- Certification: CE
- Drum Size: 89mm × 219mm
- Cable: 24m of 9mm diameter
- Recommended Battery: 650CCA Minimum for Winching
- G.W: 62KG
- Gear Ratio: 370/1

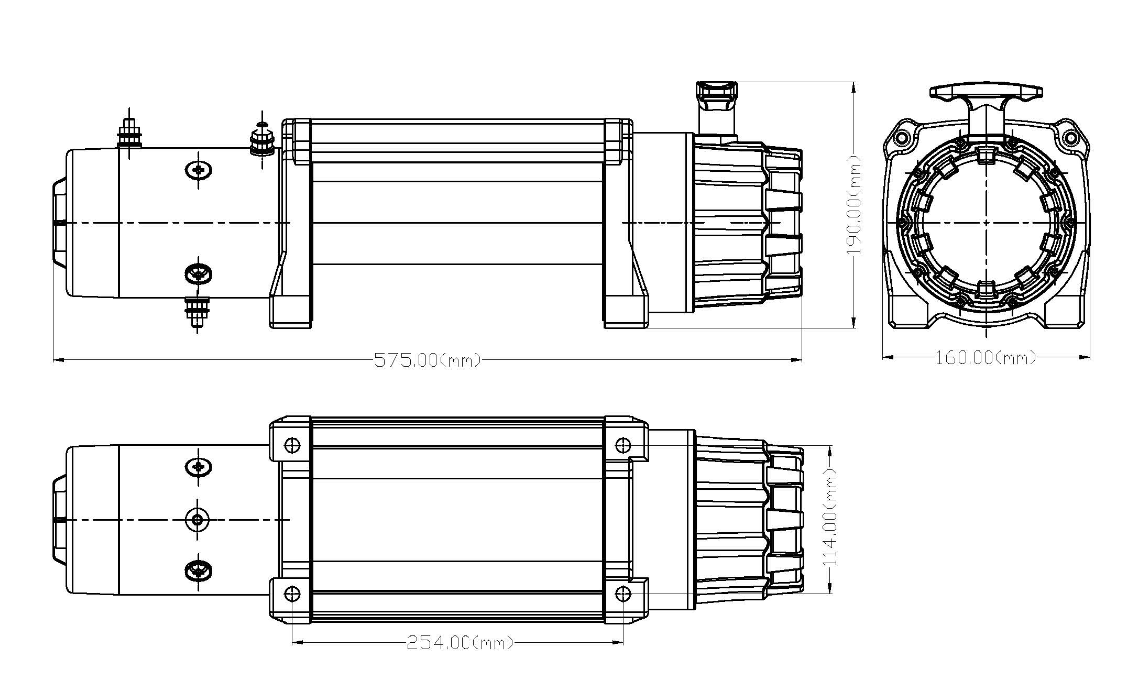

- Mounting Bolt Pattern: 254mm × 114.3mm
- Clutch: Sliding Ring Gear
- Brake: Mechanical brake
- Performance: 12VDC
- Fairlead: Aluminum Hawse Fairlead
- Rated Line Pull: 15000LBS
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
