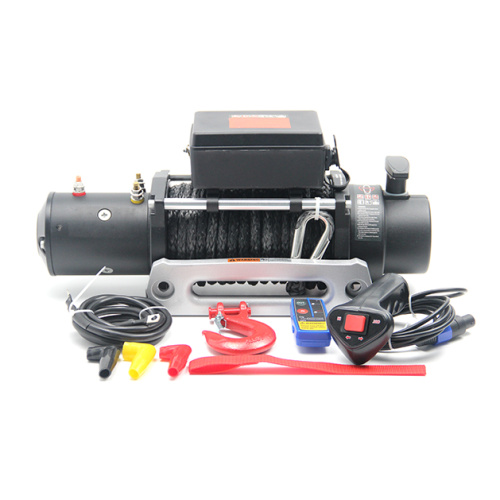

DAO 13500lbs 4 WD Truck winches 12 v for sale treuil
Designed with your safety in mind, this 13500lbs winch features dynamic braking of the winch drum
so you’ll have the stopping power you need for each job. Accompanied by the
heavy-duty clevis hook and handy strap, this compact and lightweight tool is
anything when it comes to power. Offering much more than a motor and a spool of
rope, recovery winch Kit is a necessary tool for any
situation you might encounter. Our tractor winch or trolling
winch will back up your purchase with a 1-year limited warranty and FREE
lifetime technical support.
|
Manufacturer Part Number:
|
D265224-13500AS
|
|
Brand:
|
DAO
|
|
Certification
|
CE
|
|
Drum Size:
|
Diameter 2.52" × Lenght8.82" (64mm × 224mm)
|
|
Cable:
|
79ft of 3/8"± diameter（24m of 9.5mm diameter）
|
|
Overall Dimensions:
|
（L×W×H）25.2"×14.6"×10.2"（640mm × 370mm × 260mm）
|
|
Recommended Battery:
|
650CCA Minimum for Winching
|
|
Battery Leader:
|
2 gauge,72"(1.83m)
|
|
Motor:
|
8.84HP/6.5KW, series wound
|
|
Finish:
|
Black
|
|
Control:
|
Remote switch,12ft(3.7m)lead
|
|
Gear Train:
|
3 Stage planetary
|
|
G.W:
|
30KG
|
|
Gear Ratio:
|
265/1
|
|
Mounting Bolt Pattern:
|
10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)
|
|
Clutch:
|
Sliding Ring Gear
|
|
Remote Control:
|
Include
|
|
Brake:
|
Mechanical brake
|
|
Performance:
|
12VDC
|
|
Fairlead:
|
4-Way Roller Fairlead
|
|
Rated Line Pull:
|
13500LBS
|
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
