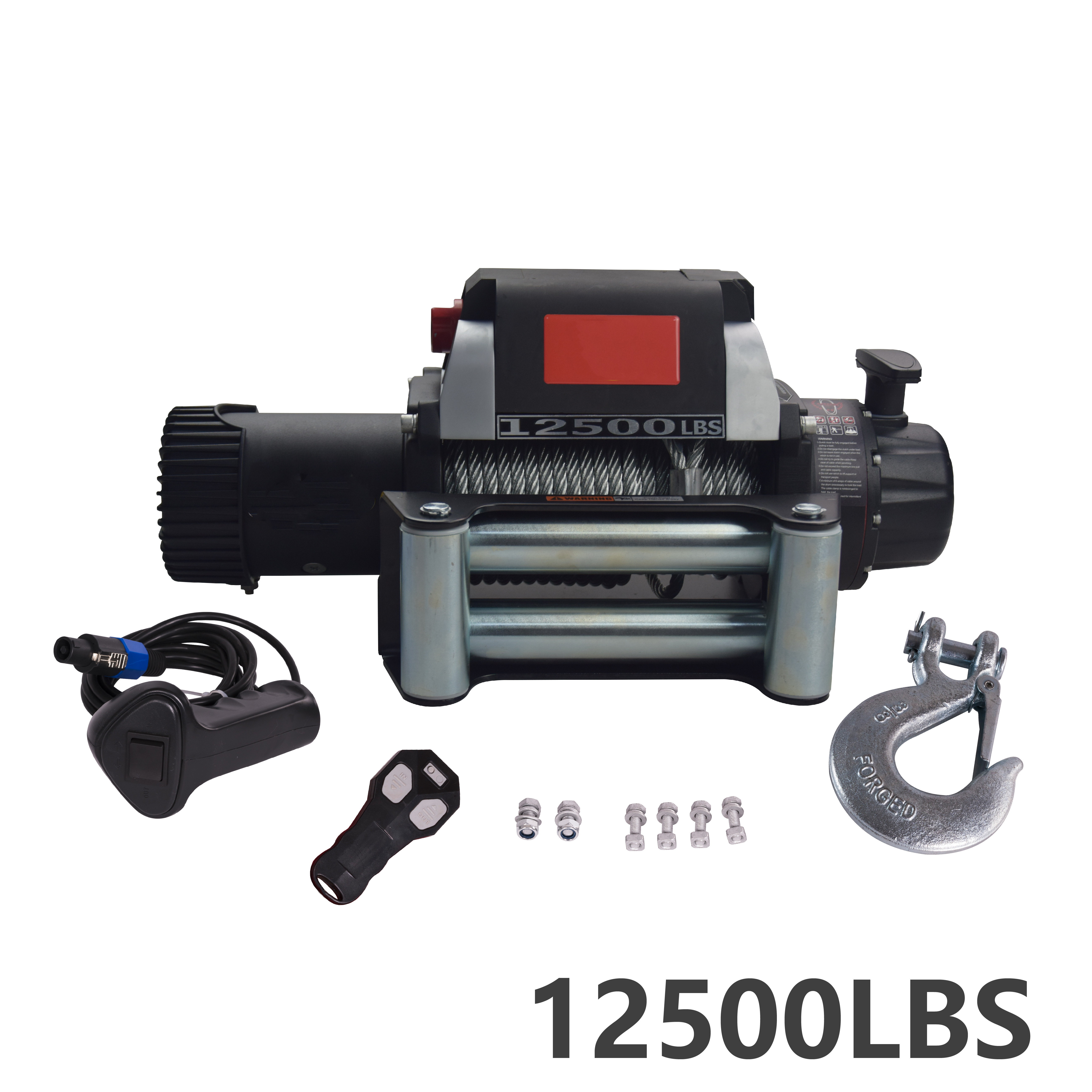

Powerful 12v 12500lbs steel cable electric winches

Powerful 12v 12500lbs steel cable electric winches

$165.00 - $240.00/Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Piece/Pieces per Week
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram
Port:	Shanghai

Product Description

Manufacturer Part Number:	151252265406
Brand:	DAO
Certification	CE
Drum Size:	Diameter 2.52" × Lenght8.66" (64mm × 220mm)
Cable:	Diameter 9.5mm of 24m
Overall Dimensions:	（L×W×H）565x160x190mm
Recommended Battery:	650CCA Minimum for Winching
Battery Leader:	2 gauge,72"(1.83m)

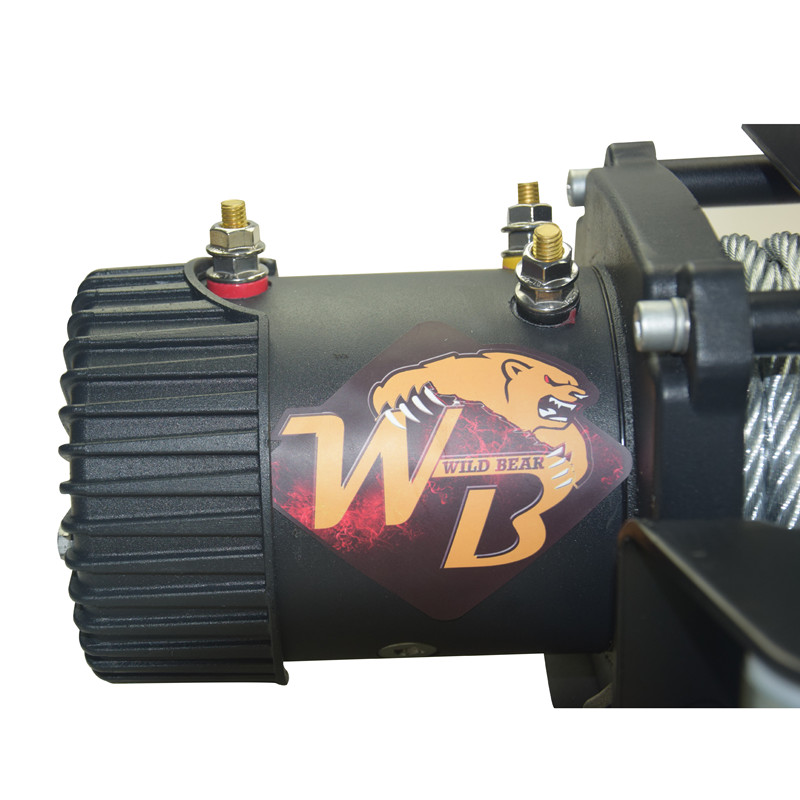

Motor:	8.84HP/6.5KW, series wound
Finish:	Black

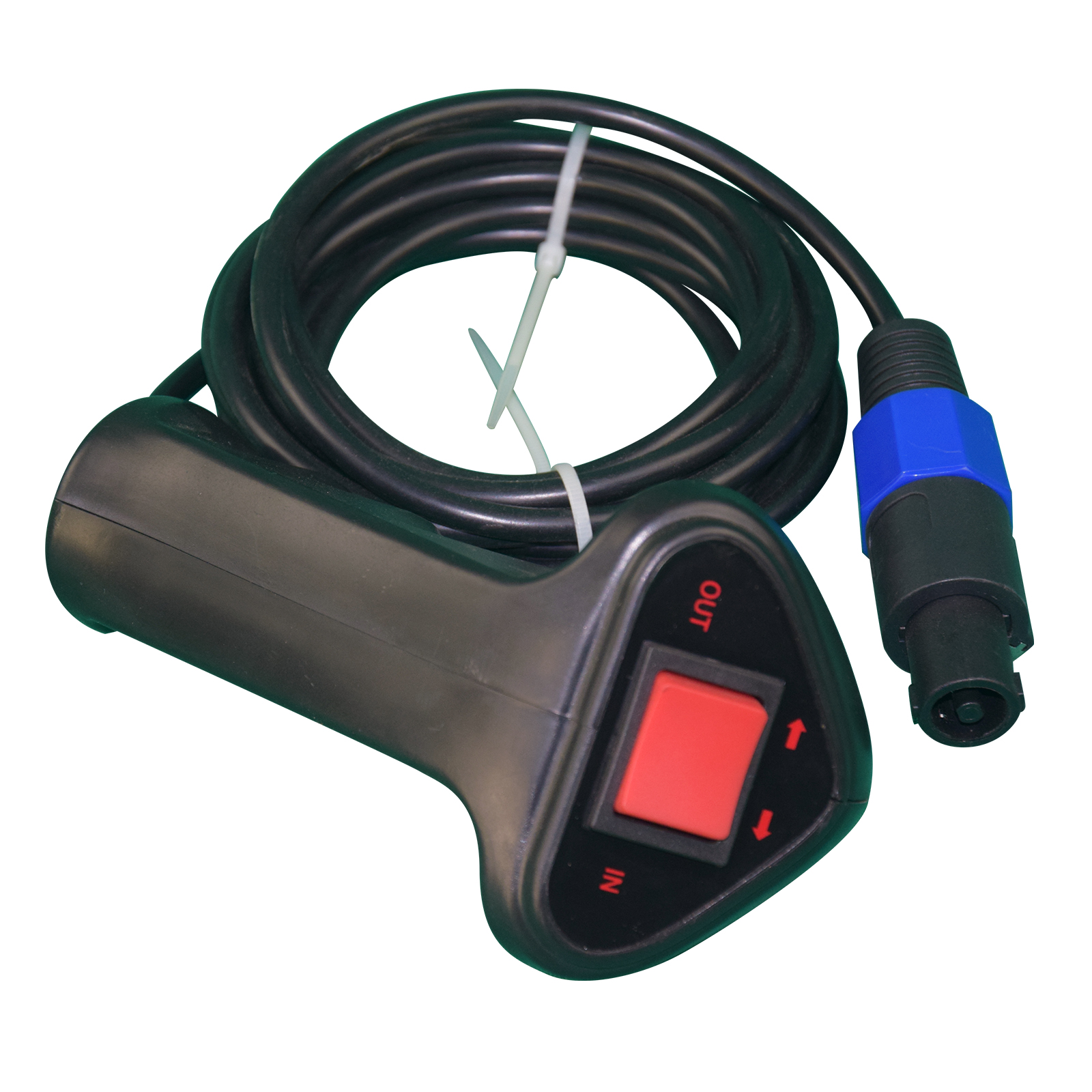

Control:	Remote switch, 11.8ft(3.6m)lead
Gear Train:	3 Stage planetary
G.W:	35.5KGS
Gear Ratio:	216/1
Mounting Bolt Pattern:	10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)

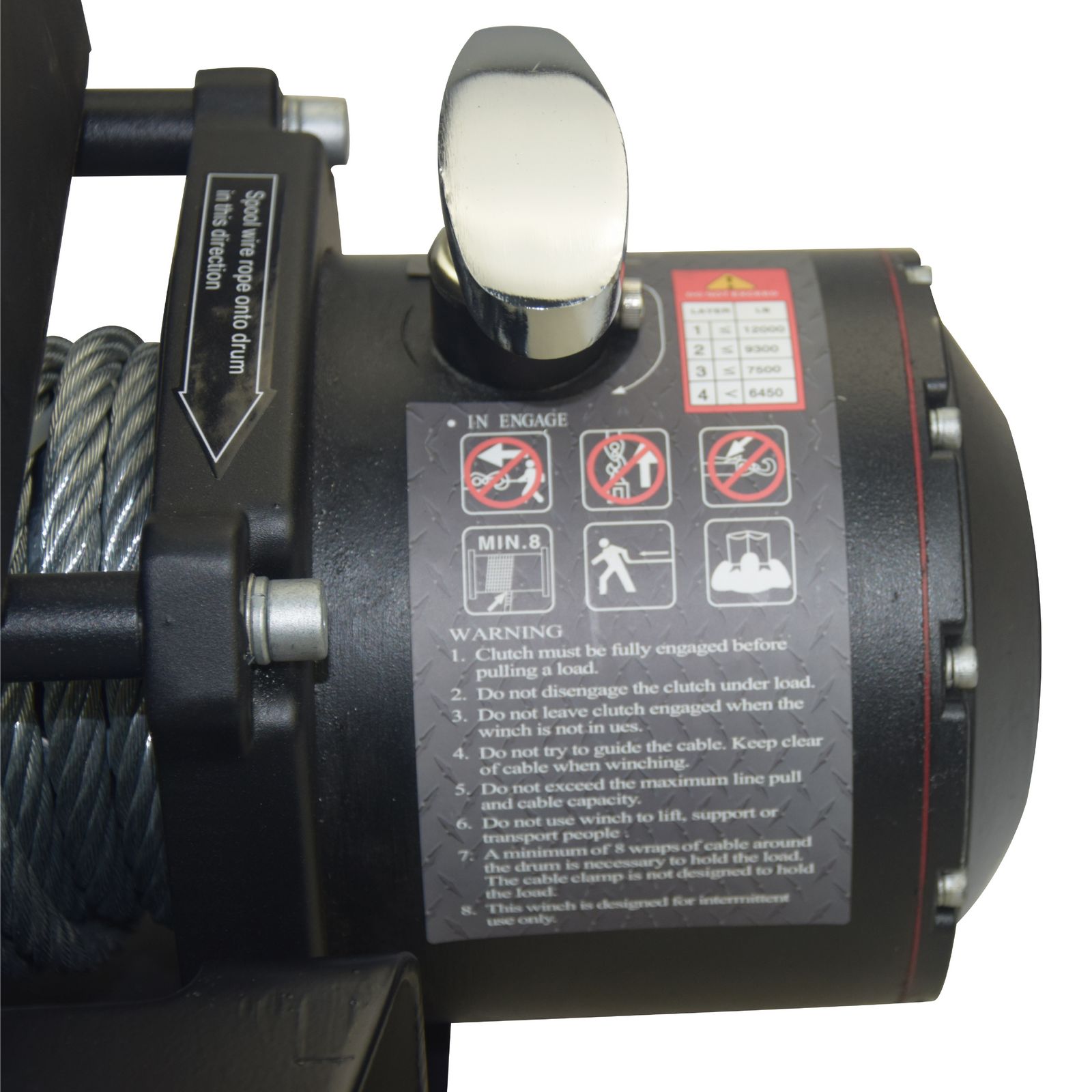

Clutch:	Pull&Turn Gear
Remote Control:	Include
Brake:	Mechanical brake
Performance:	12VDC
Fairlead:	4-way roller fairlead
Rated Line Pull:	12500LBS

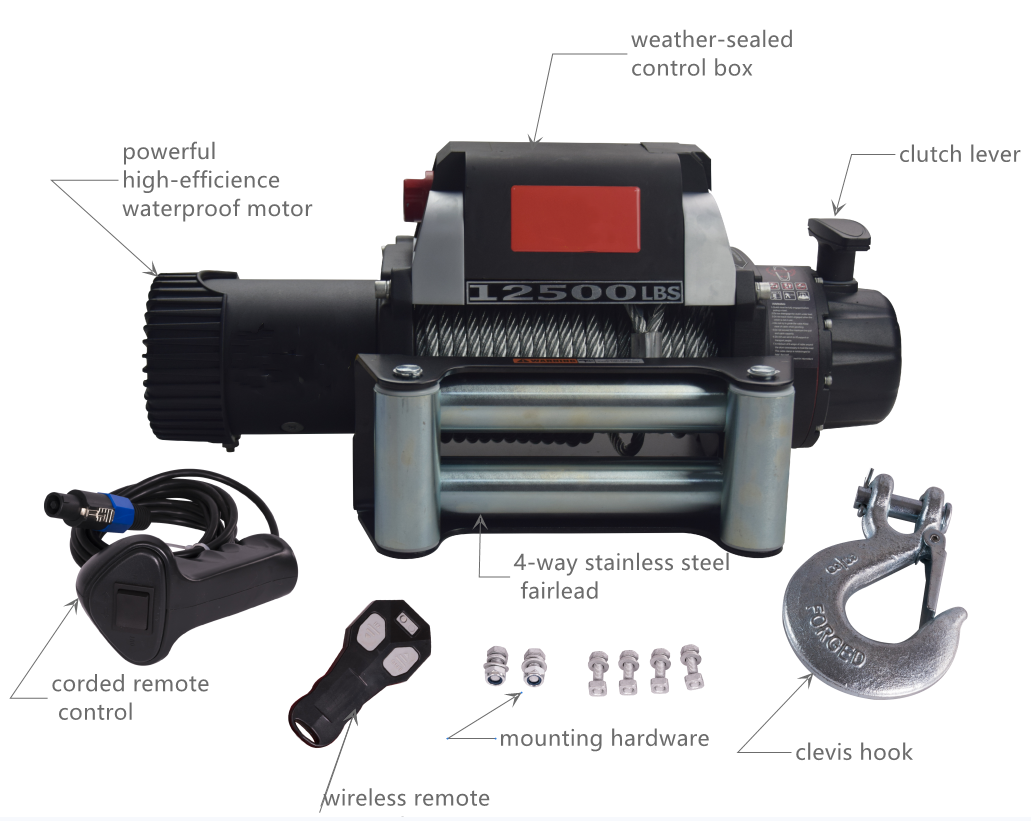

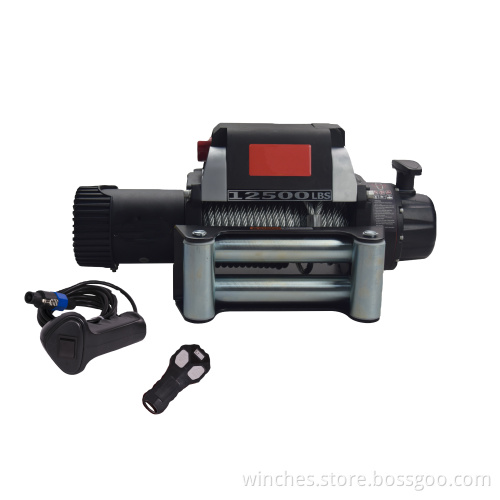

Details Images

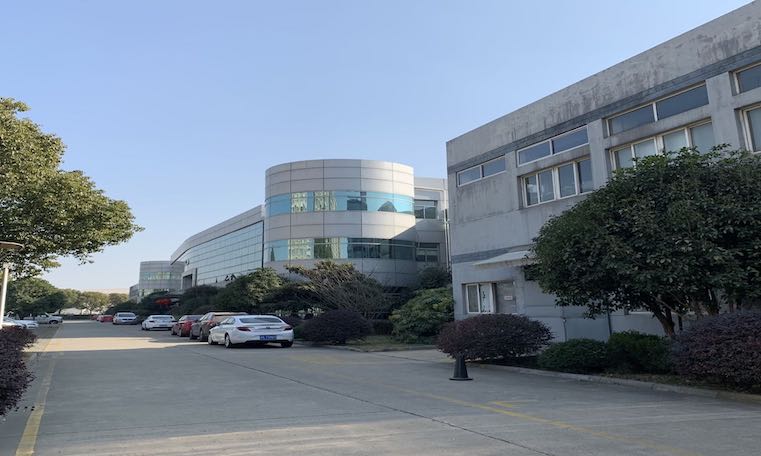

Company Profile

About Us

DAO is established in Y2015 and located in Suzhou Industry Park, China. DAO has started the business on high-tech materials, such as UHMW-PE film, PTFE film, PU foam products. These materials provide customer abrasive resistance, chemical resistance, high
temperature resistance, sealing and vibration absorption solutions. This is more focused on off-line/domestic business.

In on-line business, DAO has diversified its business from materials to Finished Product -Winches, which comes to the 2nd large Business Unit in DAO Group. DAO acquires a very experienced Winch manufacturing facility in a same city and enhance the marketing
strategy through on-line trading. DAO wishes to provide professional and timely service and products and assist clients achieve their value, and therefore to achieve DAO's value -- Glorify God and Edify people.

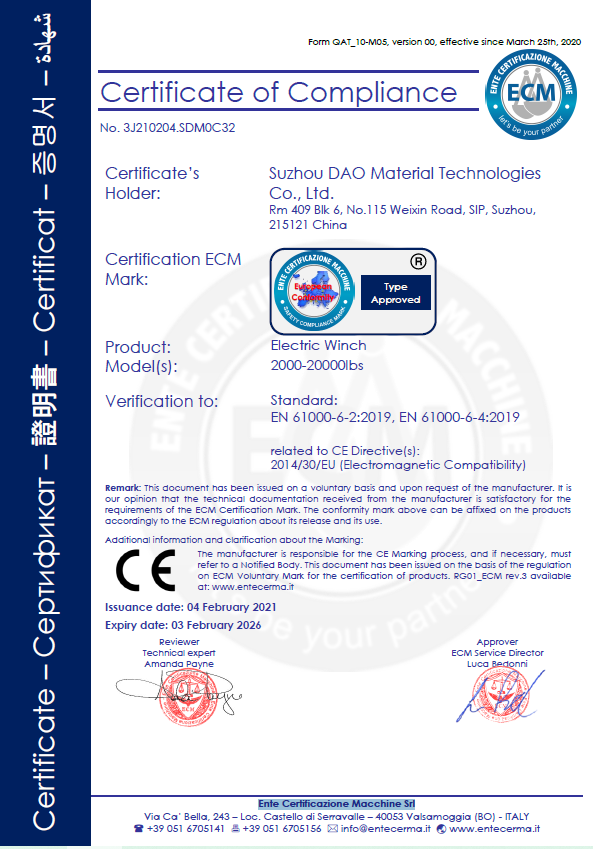

Certifications

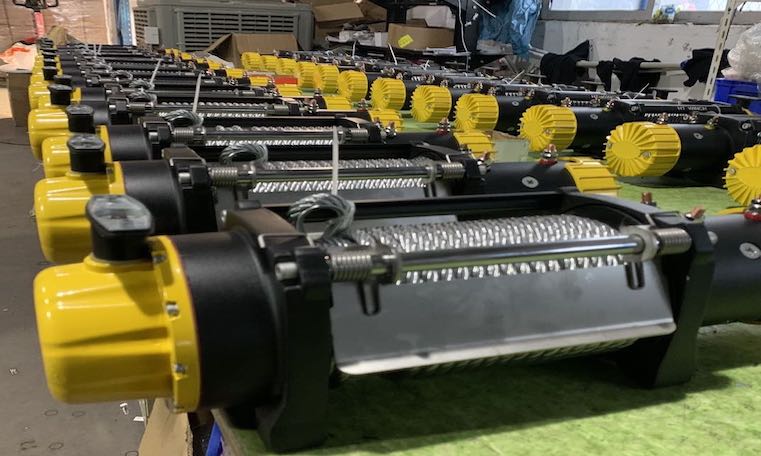

Customer Photos

Targeted Market

Payment&Delivery

FAQ

Q1. What is the advantage about your company? A1. Our plant has more than 10 years in winch manufacturing and winch design. We not only accumulated good experience but also a lot lesson learnt. To control high quality, all the key components we have produced in house, like motor, solenoid, base frame,and so on. Q2. Why should I choose your products? A2. Our products will go toe-to-toe with the top professional brands. And we can sell them for a fraction of the price because we cut out the middleman and pass the savings on to you. Q3. Can your company provide OEM/ODM? A3. Yes, we can provide a range of simple label and complicated artwork customized

Q4. How to operate the winch?

A4. Before operating, please read the instrcution and check the wire rope and equipment carefully. A frayed wire rope with broken strands should be replaced immediately. Never winch with less than 5 turns of wire rope around the drums since the wire rope end fastener may not withstand full load. Don't exceed maximum line pull rating shown in tables.Shock loads must not exceed these ratings. Any question, please send a message to us, we will satisfy you.

Q5. How to prevent overheating?

A5. An electric winch is like any other motor driven power tool such as an electric drill or saw. The electric motor should not be allowed to become excessively hot. If the end of the motor, becomes uncomfortably hot to touch, stop winching and allow the motor to cool down.
