12000lbs 12v Wire Rope Winch
Powerful motor winch powered by 4.8kw output permannet motor and equipped with 3 stage planetary gear train which ensure that electric winch is able to provide pulling force stably in any situation.
This 12000 Lbs winch is cotated with balck powder finish feature which is not easy to rust and fearless of rain and moistur e. And our 4x4 winch cosmes with two remote controls, allowing you to remotoe the 12v winch within 30m.
12000 Lbs Electric Winch Specificatons
- Motor: 6.5HP/4.8KW, series wound
- Drum Size: 64mm × 224mm
- Cable: 24m of 9.5mm diameter

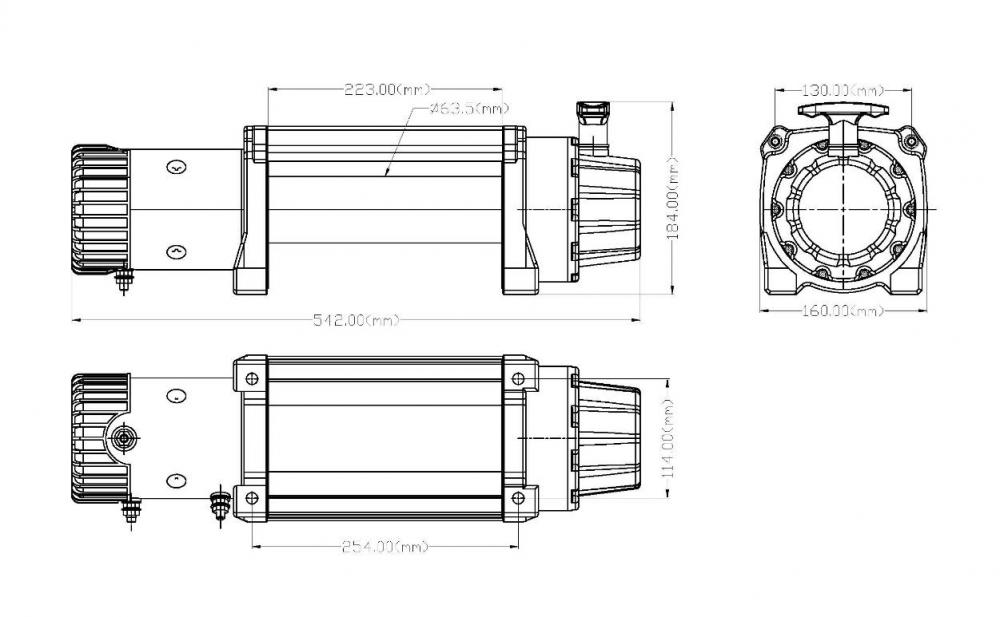

- Overall Dimensions: 640mm × 370mm × 260mm
- Recommended Battery: 650CCA Minimum for Winching
- Gear Train: 3 Stage planetary
- Gear Ratio: 265/1
- Mounting Bolt Pattern: 254mm × 114.3mm
- Brake: Mechanical brake
- Fairlead: 4-Way Roller Fairlead
- Rated Line Pull: 12000LBS
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
