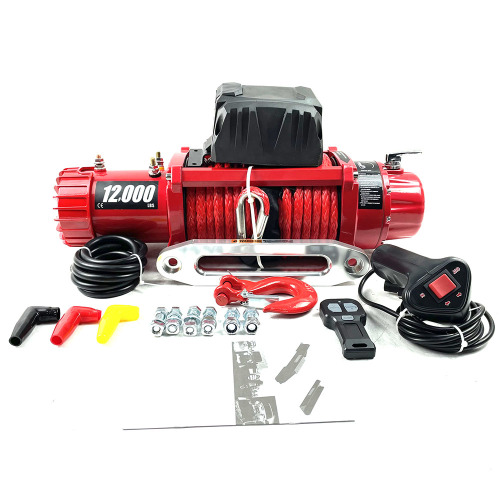

12000lbs Electric Winch 12v
synthetic rope winch is special designed for atv, utv, trucks, car, boat, jeeps, modified vehicles and multi purpose utility trailers. Powerful motor winch and three-stage planetary gear system provide faster linear speed and lower ampere traction under load.Heavy duty sealed contactor with positive load control for power input and output. Jeep winch If there is any problem during the purchase period, please contact us at any time, and we will provide the most professional and timely service
12000 Lbs Electric Winch Specifications
- Motor: 6.5HP/4.8KW, series wound
- Drum Size: 64mm × 224mm
- Cable: 24m of 9.5mm diameter
- Overall Dimensions: 640mm × 370mm × 260mm
- Recommended Battery: 650CCA Minimum for Winching
- Gear Train: 3 Stage planetary
- Gear Ratio: 265/1
- Mounting Bolt Pattern: 254mm × 114.3mm
- Brake: Mechanical brake
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
