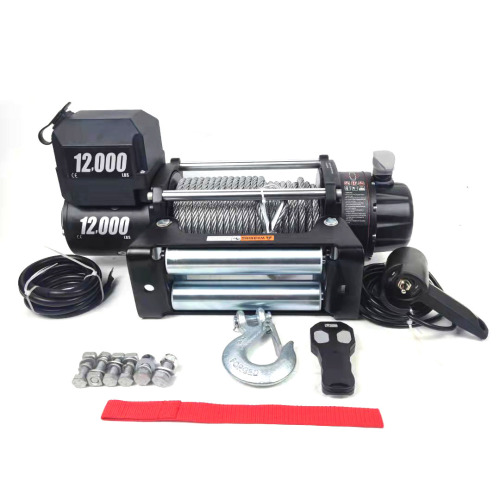

OEM/ODM 12000lbs 12v Offroad Winch
Our 4x4 winch is made of 6.5hp motor with a high quality bigger carton brush, which will offer more power when pulling things. And we can offer 158/1 216/1 and 256/1 gear ratios. If you would like fast speed winch, then 158/1 can meet.
This electric winch has improved for meeting various of trekkers, such as heavy duty hook with safer hand saver, high quality one piece solenoid and things like this.
12000 Lbs Winch Specificatons
Motor: 8.84HP/6.5KW, series wound
Drum Size: 64mm × 224mm
Cable: 24m of 9.5mm diameter
Overall Dimensions: 640mm × 370mm × 260mm
Recommended Battery: 650CCA Minimum for Winching
Gear Train: 3 Stage planetary
Gear Ratio: 265/1
Mounting Bolt Pattern: 254mm × 114.3mm
Brake: Mechanical brake
Fairlead: 4-Way Roller Fairlead
Rated Line Pull: 12000LBS
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
