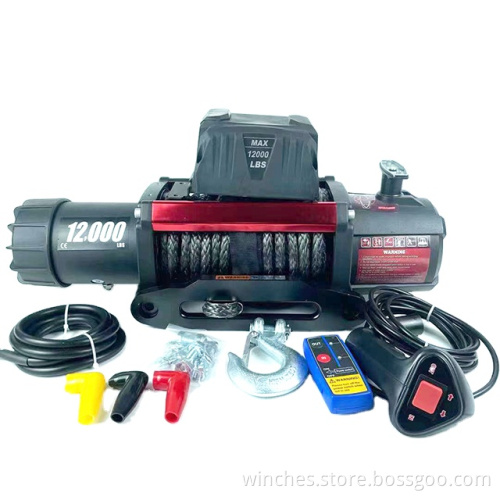

Power motor car winch 12000lbs electric winch
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000 Piece/Pieces per Week |
|---|---|
| Payment Type: | L/C,D/P,D/A,T/T,MoneyGram |
| Incoterm: | FOB,DAF,CFR,DES,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |
When you`re exploring off-road in your 4x4,
plowing through mud bogs, charging up sandy hills, and fording across streams,
getting stuck is only a matter of when, not if. But when your truck, Jeep or
SUV is equipped with one of our powerful 12000 Lbs winch, Our wire rope winch/ 4X4 winch will work, getting stuck won`t ruin your day. You`ll be able
to pull free, keep moving on and having fun regardless of the terrain, so
getting stuck will become just another part of the adventure. So it’s very important
to get your winch 12000 lbs in your 4x4.
|
Manufacturer Part Number:
|
D26555-12000AS
|
|
Brand:
|
DAO
|
|
Drum Size:
|
Diameter 2.52" × Lenght8.82" (64mm × 224mm)
|
|
Cable:
|
82ft of 3/8"± diameter（25m of 10mm diameter）
|
|
Overall Dimensions:
|
（L×W×H）25.2"×14.6"×10.2"（640mm × 370mm × 260mm）
|
|
Recommended Battery:
|
650CCA Minimum for Winching
|
|
Battery Leader:
|
2 gauge,72"(1.83m)
|
|
Motor:
|
7.4HP/5.5KW, series wound
|
|
Finish:
|
Black/Orange
|
|
Control:
|
Remote switch,12ft(3.7m)lead
|
|
Gear Train:
|
3 Stage planetary
|
|
G.W:
|
29.4KG
|
|
Gear Ratio:
|
265/1
|
|
Mounting Bolt Pattern:
|
10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)
|
|
Clutch:
|
Sliding Ring Gear
|
|
Remote Control:
|
Include
|
|
Brake:
|
Mechanical brake
|
|
Performance:
|
12VDC
|
|
Fairlead:
|
Aluminum Hawse Fairlead
|
|
Rated Line Pull:
|
12000LBS
|
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
