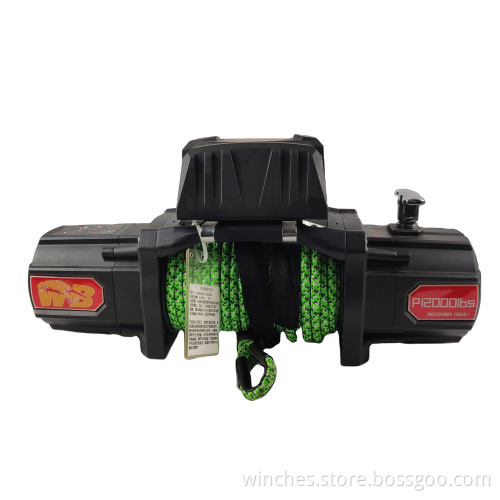

Rope Electric Winch 12000lbs
Recover a stuck vehicle, haul timber, or load a boat with this powerful 4x4 winch. The motor stays quiet while the 3-stage planetary gear system provides fast line speed. Like most winches, this one operates under a free spool clutch whenever you need to pull out the line. Its 12000lbs cable is made from thick and durable wire rope winch that are hard to damage. Featuring an automatic load-holding brake for safety, this electric winch is a must-have for your next off-road adventure.
12000 Lbs Winch Specifications
Motor: 8.84HP/6.5KW, series wound
Drum Size: 64mm × 224mm
Cable: 24m of 9.5mm diameter
Overall Dimensions: 640mm × 370mm × 260mm
Recommended Battery: 650CCA Minimum for Winching
Gear Train: 3 Stage planetary
Gear Ratio: 265/1
Mounting Bolt Pattern: 254mm × 114.3mm
Brake: Mechanical brake
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
