12000lbs Capacity Pull Wire Rope Winch
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000 Piece/Pieces per Week |
|---|---|
| Payment Type: | L/C,D/P,D/A,T/T,MoneyGram |
| Incoterm: | FOB,DAF,CFR,DES,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shanghai |

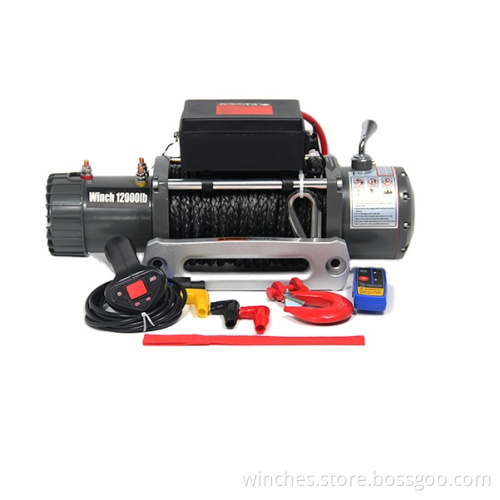

Recover a stuck vehicle, haul timber, or load a boat with this powerful 4x4 winch. The motor stays quiet while the 3-stage planetary gear system provides fast line speed. Like most winch, this electric winch operates under a free spool clutch whenever you need to pull out the line. Its 12000lbs cable is made from thick and durable wire rope winch that are hard to damage. Featuring an automatic load-holding brake for safety, this 12000 Lbs winch is a must-have for your next off-road adventure.
12000 Lbs Electric Winch Specifications
- Motor: 8.84HP/6.5KW, series wound
- Drum Size: 64mm × 224mm
- Cable: 24m of 9.5mm diameter
- Overall Dimensions: 640mm × 370mm × 260mm
- Recommended Battery: 650CCA Minimum for Winching
- Gear Train: 3 Stage planetary
- Gear Ratio: 265/1
- Mounting Bolt Pattern: 254mm × 114.3mm
- Brake: Mechanical brake
Features:
1. Free spooling clutch
2. Automatic screw cone braking action
3. DC 12V or DC 24V Power drive optional
4. Series Wound Motor
5. Remote control through control box and switch
6. Wireless remote control available F type fixed in control box
