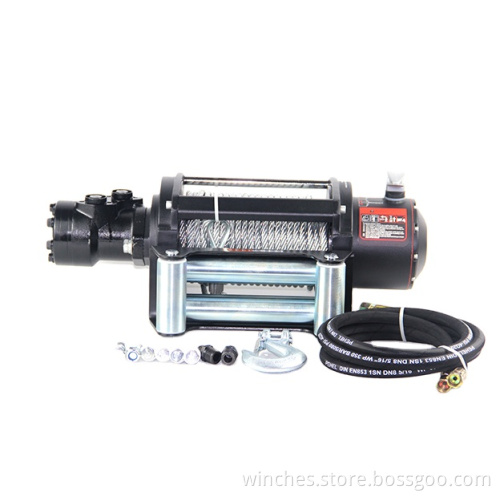

High Performance 10000lbs Hydraulic Winch
With working capacities of 10000lbs hydraulic 4Wd winches designed for the demands of the towing and recovery, utility, oil & gas, and mining & construction applications, we have the industrial hydraulic winch you need. Fast line speeds limit time in the danger zone and increase efficiency and productivity on the job.
10000 Lbs Winch Specifications
- drag line pull: 4,545 kg / 10,000lb
- drag speed: 17.4ft/min 5.3m/min
- operating pressure: 14.0mpa/2030.6psi
- maximum oil Flow (L/min): 60L/min
- hydraulic motor: 51.7cm3/rev
- Gear ratio: 36/1 2 stage planetary
- winch construction: aluminum die and housing with steel drum
- clutch: pull & turn gear
- drum size:89mm X 220mm
- drum inner diameter:70mm
- drum external diameter: 89mm
- drum length: 220mm
- winch weight: 40kgs
- winch gross weight: 41kgs
Features:
1. STURDY & DURABLE MATERIAL
2. ADVANCED STEEL CABLE
3. FAST & SMOOTH SPOOLING
4. ACCESSORY ON THE PAR WITH THE WINCH
5. WIDE APPLICATION
