KP06 Rail clip for rail fastening system
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 200000PCS/Month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CIP,DDP,DDU,Express Delivery |
| Certificate: | ISO4001/ISO9001/ISO45001 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |
KP06 Rail clip , also called rail clip or rail fixing clip, is a device that used to maintain the lateral position of the rail, especially crane rail,mine rail, and H-beam. but allow necessary longitudinal movement. In rail fastening system, the rail clamp secures the rail in position through mechanical lock, in the meantime, accepts the rail longitudinal rail movement through the combined vulcanized-bonded synthetic elastomeric nose. In general, rail clamps are always fastened onto the rail sleepers with anchors bolts. For types, boltable rail clamps and weldable rail clamps are the main varieties.
KP06 Rail clip Technical Parameters
|
Part name |
Type | Material | Finish | Remark |
| KPO clip | KPO3, KPO6, KPO9 | Q235 | Plain oiled | Standard: DIN5906 |
| HS bolt | HS26, HS32 |
Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm Standard: UIC864-2 |
| Hex nut | As ordered |
Grade 5: 35# Grade 8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN985 |
| Double coil spring washer | As ordered | 65Mn | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: UIC864-3 |
| screw spike |
M24×150mm M24 ×160mm M24 ×180mm or other length as ordered |
Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Base plate | UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size | Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel | Plain oiled | Standard: UIC864-6 |
Main Specifications of KP06 Rail clip
1. Spec: Base on customer drawing or specification
2. Material: Q235
3. Application: Railway, crane or Industrial fastening
4: Manufacturing style: Casting or forging
The rail clamp is packed in wooden boxes or sacks and wooden pallets. On average, 25kgs per package.
We are a leading rail clamp manufacturer in China. We can also make other rail fastenings such as rail clip, railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type.

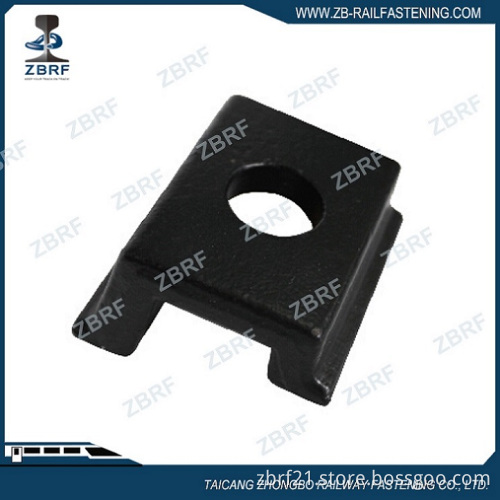

Photos of KP06 Rail clip
