Rail Anchor for 80LB in South American

Rail Anchor, also known as Railway Anti Creeper devices or railway spring steel clips, are made of integral spring steel or equivalent materials. Rail Anchor For Railroad are used to connect the bottom surface of the rail base plate and rest against the side of the sleeper to prevent longitudinal movement of the rail due to temperature changes or vibration. Provides a large bearing surface for the rail base and sleeper, avoiding loosening, cutting and wear, thereby extending the service life of the wooden sleeper.

Technical Parameters of 80LB Rail Anchor

Material: 65Mn, 60si2Mn

Product properties: Hardness HB290-330

Tensile strength:980-1114N/mm2

Coating: Plain

Reference Project of 80LB Rail Anchor

1.Chile 2018

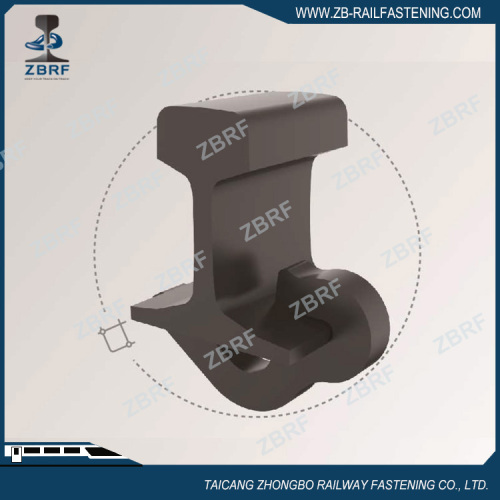

Photo of 80LB Rail Anchor

Main Rail Anchor Types

* 50E3 Rail Anchor

Reference project: SBB railroad network

Technical parameter:

Material: Alloy spring steel

Product properties: Hardness HB300-380

Longitudinal resistance＞7KN to EN 13481-3

Coating: Plain

*85CP Rail Anchor

Reference project: Chile in 2018

Material: Alloy spring steel

Product properties: Hardness HB300-380

* 115RE Rail Anchor

Reference project: Chile in 2018

Material: 65Mn, 60si2Mn

Product properties: Hardness HB290-330

Tensile strength:980-1114N/mm2

Coating: Plain

* BS80A Rail Anchor

Reference project: Peru

Material: 65Mn,60Si2Mn,etc.

Product properties: Hardness HB290-330

Tensile strength:980-1114N/mm2

Testing facilities

* Special testing tools to test dimensions;

* Testing machines for testing the mechanical properties:

We have producted different kinds of Rail Anchor, Railway Anti Creeper for many years and delivered to customers in different areas around the world. We have plenty of experience and confidence to manufacture the products that you need. NO MATTER Standard parts, Customized parts...we can produce whatever you need !
