SKL tension clamp rail fastening system for railroad

SKL tension clamp rail fastening system for railroad

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1800000 Tons
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP,DDU,Express Delivery
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai

Product Description

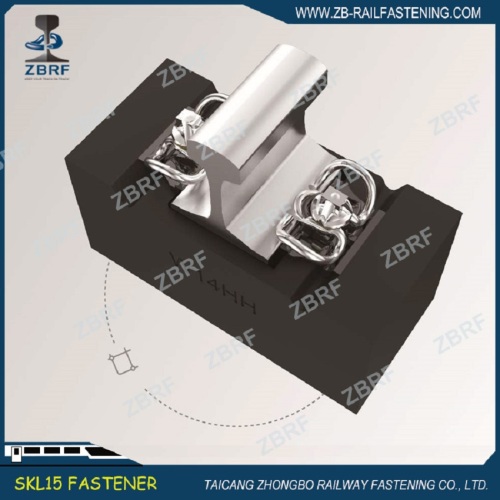

SKL tension clamp rail fastening was widely used for railroad of concrete sleeper, ballast or ballastless track. It could be made for rail track UIC54, UIC60, 136RE, 135RE, China 50kg rail, 60 kg Rail by change the design of rail pad and guide plates.

Main components:

* Tension clamp SKL type --2pcs

*Sleeper screw with washers--2pcs

* guide plates--2pcs

* Rail pad--1pc

*Plastic dowels--2pc

Components description:

W type Rail elastic clip/ SKL clip

Raw material: 60Si2CrA, 38Si7
Type: SKL1, SKL3, SKL12, SKL14, etc
Surface: plain ( oil), black paint, color paint, zinc, hdg, etc

Rail pad
Raw material: EVA/Elastomer/Rubber
Surface: plain

Angle guide plates
Raw material:PA66+30%GF, PA6+30%GF,etc
Surface: plain

Plain washer
Size: from ULS6, etc
Raw material: Q235,45#
Surface: black, zinc, hdg

Screw spike/ Timber screw

Grade: 4.6, 5.6, 8.8
Raw material: Q235, 35K, 45#, 40Mn2, 20MnSi,

Surface: plain (oil), black, zinc, hdg, etc

Plastic inserts

Raw material:PA6, PA66, HDPE

Surface: plain

Reference Project:

1.Saudi Arabia 2013

2.Kazakhstan Railroad

network 2014, 400 thousand

sleeper sets.

Our products are performing widely in more than 50 countries in the world, for exporting, there are mainly divided four areas as below:

America mainly in USA and, Canada, Mexico and Brazil:
We supply E type rail fastening, W14 rail fastening systems, rail clips to metro, tramway fastenings, crane rail clips, track bolts and joint bar for rail connection, screw spikes, tie plates and concrete rings connection bolts for tunnels. They are mainly according to standards of AREMA, IFI, ASTM, UIC and other specifications from clients.

West Europe and Africa areas mainly in Spain, German, South Africa and Nigeria:
We supply W rail fastening systems, spring blade fastening systems, KP fastening system, metro rail fastenings,fish plates and fish plate bolts, sleeper screws, lock spikes, spear bolts for tunnels etc. They are manufactured to standard of UIC, NF ,DIN, BS and other specifications requested by clients.

East Europe and Mid-Asia area mainly in Russia, Kazakhstan, we supply:
W rail fastening systems, KP fastening system, rail joint bars and track bolts, track spikes and tie plates to this area. We manufacture and supply according to standard GOST, UIC, DIN and other specifications requested by clients.

Australia and Southeast Asia area mainly in Australia, Thailand, we supply:
E type rail fastening, W rail fastening, heavy haul rail fastenings, metro rail fastenings,fishplate and bolts, track spikes, turnout accessories, concrete ring connection bolts etc. We manufacture and supply according to standard BS, AS, JIS, UIC and specifications requested by clients.
