E clips made of spring steel
  • E clips made of spring steel
E clips made of spring steel

E clips made of spring steel

Transportation:
Ocean, Land, Air, Express
Port:
Shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 5 Millions Annually
Supply Ability: 5 Millions Annually
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW,FCA,CIP,DDP,DDU,Express Delivery
Certificate: ISO4001/ISO9001/ISO45001
Transportation: Ocean,Land,Air,Express
Port: Shanghai
Product Description
Product Description

Spring steel clips used with railway sleeper to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged rail clips are considered to be better than other metal forming process due to most uniform microstructure.


Technical Parameters of Spring steel clips

Material: 60si2Mn
Standard: GB/T 1222
Product properties: Hardness HRC44-48
Fitague test≥ 5 million cycles
Clamping force ≥12KN to EN 13146-7
Coating: Plain, painting




Photo of Spring steel clips

Spring Steel Clips


Main Spring Clip Types

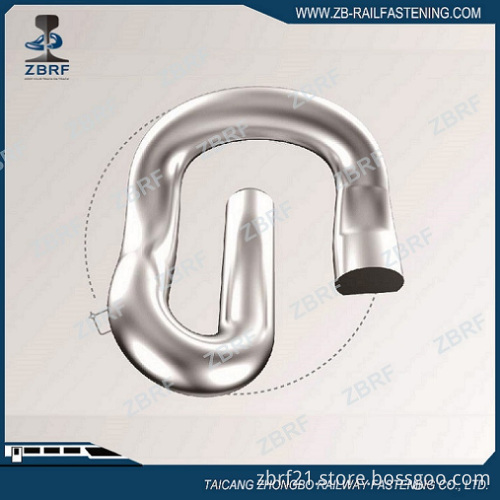

* E Type Spring Clip

Size:

Φ16: E1609,etc

Φ18:E1806,E1809,etc.

Φ20:E2007,E2009,E2055,E2056,E2063,etc.

Material: 60Si2Mn, etc

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

Surface: Plain, painting, mechanical galvanized,etc.

Spring Steel Clips


* SKL Type Spring Clip

Size: SKL1, SKL3, SKL12, SKL14

Material: 60Si2Mn, 38Si7, etc.

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Surface: Plain, painting, mechanical galvanized,etc.

Skl14 Rail Clip


* D Type Spring Clip

Material: 60Si2Mn, 38Si7, etc.

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Surface: Plain, painting, mechanical galvanized,etc.

D Rail Clips


*KR Type Spring Clip

Material: SPS9,SPS9A,etc
Surface: Plain, painting, etc.


* Safelock Type Spring Clip

Material: 60Si2Mn

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

Standard: GB/T 1222 equivalent to SAE 9267

Surface: painting, etc.

Deenik Clip


*SB Type Spring Clip

Material:38Si7, 60Si2CrA,etc

Standard:GB/T 1222, UNI 3545

Surface:Plain, painting, etc.




Testing facilities

* Special testing tools to test dimensions;

* Testing machines for testing the mechanical properties including:

Material test,

Hardness test,

Clamping force test,

Fatigue test,

Or at customers' request






We have producted different kinds of Elastic Clip,Elastic Tension Clip,Elastic Tension Clamp for many years and delivered to customers in different areas around the world. We have plenty of experience and confidence to manufacture the products that you need. NO MATTER Standard parts, Customized parts...we can produce whatever you need !
