38Si7 SKL14 clip for railroad fastening

38Si7 elastic rail clip used with railway sleeper to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged rail clips are considered to be better than other metal forming process due to most uniform microstructure.

Technical Parameters of 38Si7 rail clip

Material: 60Si2Cr, 60si2Mn,38Si7

Standard: GB/T 1222, DIN 17221

Product properties: Hardness HRC42-47

Fitague test≥ 5 million cycles

Clamping force ≥10KN to EN 13146-7

Coating: Plain, painting, mechanical galvanized

Reference Project of 38Si7 rail clip

1.Saudi Arabia

2.Kazakhstan

3.Thailand

4.USA

Recent Reference Project of 38Si7 rail clip

1. Egypt-- 500,000each in 2021

2. Mexico--1,698,864each in 2021

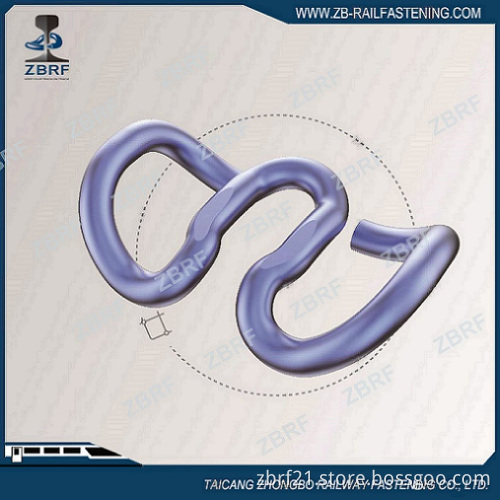

Photo of 38Si7 rail clip

Main Elastic Clip Types

* E Type Elastic Clip

Size:

Φ16: E1609,etc

Φ18:E1806,E1809,etc.

Φ20:E2007,E2009,E2055,E2056,E2063,etc.

Material: 60Si2Mn, etc

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

Surface: Plain, painting, mechanical galvanized,etc.

* SKL Type Elastic Clip

Size: SKL1, SKL3, SKL12, SKL14

Material: 60Si2Mn, 38Si7, etc.

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Surface: Plain, painting, mechanical galvanized,etc.

* D Type Elastic Clip

Material: 60Si2Mn, 38Si7, etc.

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

*KR Type Elastic Clip

Material: SPS9,SPS9A,etc
Surface: Plain, painting, etc.

* Safelock Type Elastic Clip

Material: 60Si2Mn

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

Surface: painting, etc.

*SB Type Elastic Clip

Material:38Si7, 60Si2CrA,etc

Standard:GB/T 1222, UNI 3545

Surface:Plain, painting, etc.

Testing facilities

* Special testing tools to test dimensions;

* Testing machines for testing the mechanical properties including:

Material test,

Hardness test,

Clamping force test,

Fatigue test,

Or at customers' request

We have producted different kinds of Elastic Clip,Elastic Tension Clip,Elastic Tension Clamp for many years and delivered to customers in different areas around the world. We have plenty of experience and confidence to manufacture the products that you need. NO MATTER Standard parts, Customized parts...we can produce whatever you need !
