Waterproof 4G Temperature Monitoring Device
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

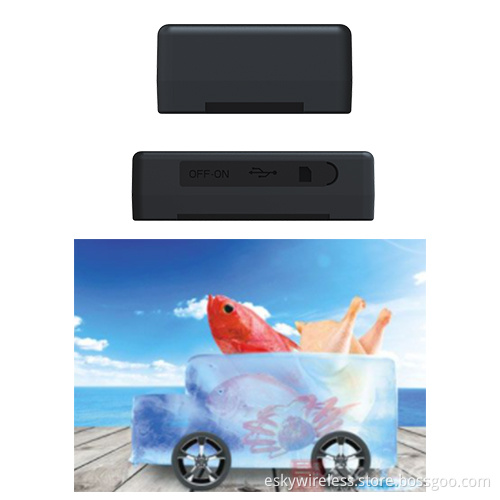

ES431 is a 4G IOT waterproof CAT-1 temperature Monitoring Device but also a GPS asset tracker. To make sure that this device can continuously work without charging, it has been embedded with a 2500mAh battery, thus this 4G Temperature Monitoring Device can last 2 years under one report one day mode. Temperature sensors can be connected to ES431 to monitor and record temperature and with strong level magnets inside, it can attach to any vehicles containers or refrigerators for cold chain logistics.
Samples are available, we also provide professional and experienced engineers to support any of your technical questions
|
Physical and Electrical Dimensions: 80mm*50mm*23mm Weight: <130g Rechargeable Battery capacity: 1000/2500 mAh Charging mode: USB charging Built-in Cellular and GPS antenna Module: LongShang Chipset Type: MDM9206 from Qualcomm Operation temperature: -20℃ to 65℃ Storage temperature (Without battery): -40℃ to 85℃ Power Consumption: active mode: ＜78 mA @ 3.8 VDC Sleep mode: ＜ 4 mA @ 3.8 VDC Deep sleep mode: ＜60 uA @ 3.8 VDC |
GPS Specification -162 dBm Tracking Sensitivity Accuracy (Open Sky): <2 m (CEP50) Cellular Communication Cat.1: LTE FDD:B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 GPRS: 900/1800MHz Protocol: TCP/IP/UDP/MQTT/FTP/HTTP(S)/COAP/LWM2M |
Report vehicle working hours: It sends machine on/off timestamps periodically so that at server or with a smartphone APP, user can know exactly the engine on/off time and so that the working hours.
Report the person who is operating the vehicle: Let the person who operating the machine carry a BLE tag, the device will detect the tag ID and report the ID together with the engine on/off information to the server.
Detect the rough driving of the vehicle: with its embedded 3-axis accelerometer, the device can detect the collision of the vehicle, harsh braking and harsh acceleration etc.
Monitor temperature: by connecting with temperature sensors, the device can detect and monitor temperature of freezer, give warning if temperature is too low or too high.
Monitor humidity: by connecting with humidity sensors, the device can detect and monitor humidity of freezers, give warning if humidity value is too high or too low.
