Temperature Monitoring System for Cold Chain Logictics
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

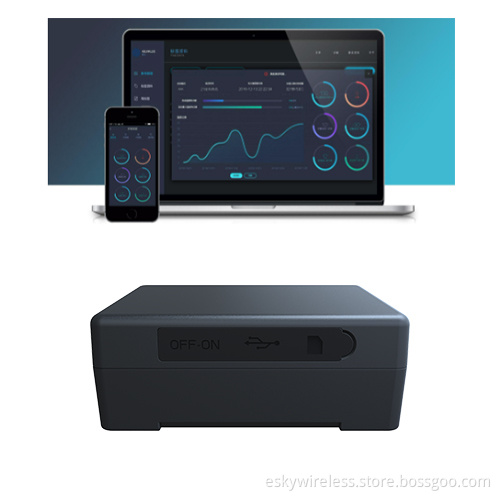

ES421 is a 4G CAT-1 temperature Monitoring Device. It can be used to monitor temperature by connecting with temperature sensors. With 7800mAh battery, the 4G Temperature Monitoring Device can last for about 5 years without charging under the one report one day mode. And embedded with strong level magnets, It can easily attach to vehicle, trailer, container refrigerator etc. Also with GPS location feature, it is really a good choice for cold chain logistics.
The module of ES421 is longshang Cat.1
|
Specification Physical and Electrical Dimensions: 86mm*62mm*33mm Weight: 286g Battery capacity: 7800/10200 mAh Supply Voltage: 3.3V~4.5V Power Consumption: -Active mode:< 78 mA 3.8VDC -Sleep mode:<4 mA 3.8VDC -Deep Sleep Mode:< 60 uA 3.8VDC Operation temperature: -20℃ to 65℃ Storage temperature(Without battery): -40℃ to 85℃ 3 LEDs for charging, GPS and Network; USB2.0 Built-in Cellular and GPS |
antenna Charging mode: USB charging Module: LongShang GPS Specification -162dBm Tracking Sensitivity Accuracy（ Open Sky): <2m (CEP50) Cellular Communication Cat.1: LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 GPRS: 900/1800MHz Protocol: TCP/UDP/ HTTP |
Report vehicle working hours: It sends machine on/off timestamps periodically so that at server or with a smartphone APP, user can know exactly the engine on/off time and so that the working hours.
Report the person who is operating the vehicle: Let the person who operating the machine carry a BLE tag, the device will detect the tag ID and report the ID together with the engine on/off information to the server.
Detect the rough driving of the vehicle: with its embedded 3-axis accelerometer, the device can detect the collision of the vehicle, harsh braking and harsh acceleration etc.
Monitor temperature: by connecting with temperature sensors, the device can detect and monitor temperature of freezer, give warning if temperature is too low or too high.
Monitor humidity: by connecting with humidity sensors, the device can detect and monitor humidity of freezers, give warning if humidity value is too high or too low.
