LTE Cat.M1 & NB small size asset tracker
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

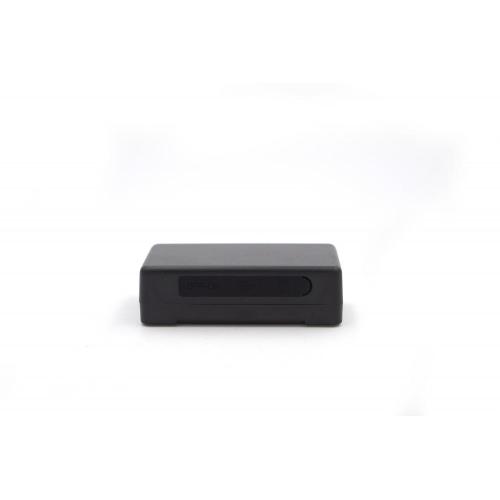

ES826 is an LTE (Cat-M1 & NB) waterproof GPS asset tracker with 2,500mAh battery. Thanks to its embedded magnets, ES826 can be easily installed to many objects with iron surface. Light sensor is used for detecting the drop or detachment of the device from the asset and a tamper message will be sent if it happens. It is carefully designed for long standby time purpose. Vibration mode is very useful for the applications in which the location information is unnecessary when it is stationary to save data communication and power consumption.
Certificates
FCC, PTCRB, TELEC, AT&T, Verizon, Sprint
Specifications
LTE & GSM Specifications
|
Operating Band |
Cat.M1 & NB: LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B26/B28 LTE-TDD: B39 (for Cat.M1 only) GSM: GSM850/ GSM900/ DCS1800/ PCS1900 |
General Specifications
|
Dimensions |
80*50*23mm |
|
Weight |
130g |
|
Battery Capacity |
2500mAh |
|
Supply Voltage |
3.3VDC ~ 4.2VDC |
|
Power Consumption |
-Active mode:<60mA@4VDC -Power saving mode:<4mA@4VDC -Deep Sleep Mode:<60μA@4VDC |
|
Operation Temperature |
-20℃ to 65℃ |
|
Storage Temperature |
-20℃ to 65℃ |
|
LTE Module |
Quectel BG96 |
|
Antenna |
Built-in cellular antenna and GPS antenna |
|
Charging Method |
USB charging |
GPS Specifications
|
Sensitivity |
Tracking: -157dBm |
|
Position Accuracy (CEP 50) |
<2.5m (Open Sky) |
Interfaces
|
LED Indicators |
3 for GPS, cellular and charging status |
|
SIM Card |
Micro SIM (3FF) |
Feature list
|
Tracking |
Send GPS information to server with configurable report interval |
|
Power Saving by Report Interval |
1.LTE and GPS will be shut down at most times in one report per day mode 2.LTE, GPS and MCU in sleep mode in long report interval (e.g. >3 minutes) mode 3.LTE, GPS and MCU in active mode in short report interval (< 3 minutes) mode |
|
Long Standby Time |
It can last 2 years under one report per day mode with 2500mAh battery |
|
Trip Start and Trip End |
Report trip start and trip end |
|
Drop Alarm |
Light sensor is used to detect the drop/detach from the tracking object |
|
Vibration Mode |
Report location information only when moving is detected |
|
LBS Positioning |
Report cell-ID info when GPS signal is not available |
|
Built-in Magnets |
Embedded with magnets, it can easily be installed to vehicle, trailer, container for asset tracking |
|
Low Battery Alarm |
Send alarm when battery voltage is low |
|
Storing Messages |
Store messages if out of cellular coverage |
|
Geofence |
Supports multi circle and polygon geofence setting |
|
OTA (Over the Air) |
Firmware can be remotely upgraded |
|
Protocols |
HTTP/TCP/UDP/SMS/MQTT |
