4G Large battery Asset Tracker

Get Latest Price

Transportation:: Air, Express

Port:: ShangHai, Shenzhen, HK

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou city Jiangsu Province China
Productivity:	100000PCS/MONTH
Supply Ability:	100000/month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA,Express Delivery
Certificate:	FCC/FCA/CTIA/ATT/RSHA
HS Code:	9015800090
Transportation:	Air,Express
Port:	ShangHai,Shenzhen,HK

Product Description

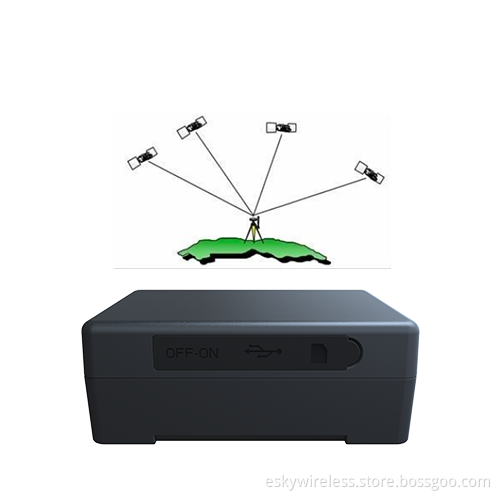

ES420 is NB asset GPS trackers. Carefully designed for long battery life, NB-IOT asset GPS trackers can last 5 years under one report per day mode with 7800mAh battery. Embedded with magnets, 4G asset GPS tracker can easily attach to vehicle, trailer, container for asset tracking. Asset Tracking Device will automatically switch to cell-ID based location reporting whenever GPS is not available.

GPS Tracker asset gps tracker

Physical and Electrical

Dimensions: 86mm*62mm*33mm

Weight: 286g

Battery capacity: 7800/10200 mAh

Supply Voltage: 3.3V~4.5V

Power Consumption:

-Active mode:< 78 mA 3.8VDC

-Sleep mode:<4 mA 3.8VDC

-Deep Sleep Mode:< 60 uA 3.8VDC

Operation temperature: -20℃ to 65℃

Storage temperature (Without battery):

-40℃ to 85℃

3 LEDs for charging, GPS and Network.

USB2.0

Built-in Cellular and GPS antenna

Charging mode: USB charging

Module: Quectel s BG95

Chipset Type: MDM9206 from Qualcomm

GPS Specification

-162dBm Tracking Sensitivity

Accuracy Open Sky): <2m (CEP50)

Cellular Communication

Cat.M1 & NB1:

LTE-FDD: B1/B2/B3/B4/B5/B8/

B12/B13/B18/B19/B20/B26/B28

LTE-TDD: B39 (for Cat.M1 only)

Output Power: 23dBm±2.7dBm

Protocol: TCP/UDP/SMS
