4G Monitoring Device for Indoor Positioning
Your message must be between 20 to 2000 characters

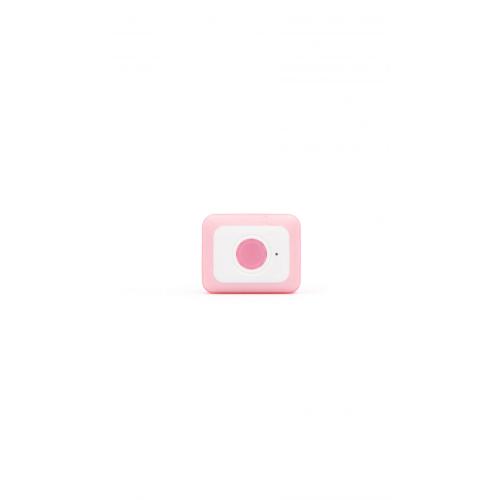

Contact NowES520 is a 4G indoor positioning device, specially designed for home alone elderly care purpose. By scanning BLE tag installed each room (including dining room, bathroom), Indoor BLE Positioning can monitor elderly’s living behavior. 4G BLE Indoor Positioning can send alarm message if it finds the elderly stays somewhere over abnormal long periods of time. The device of Indoor Positioning System has a SOS button for emergency purpose.
General Specifications
|
Dimensions |
40.4*50.4*16mm |
|
Weight |
36g |
|
Battery Capacity |
680mAh |
|
Input Voltage Range |
3.3VDC-4.2VDC |
|
Power Consumption |
- Active mode: <72mA @4VDC - Power Saving mode:<4mA @4VDC - Deep-sleep mode: <10μA @4VDC |
|
Operation Temperature |
-20 °C to +65 °C |
|
Storage Temperature |
-20 °C to +65 °C |
|
LTE Module |
Quectel BG96 |
|
Built-in BLE Module |
Cypress CYBT-343026-01 |
|
Antenna |
Build-in LTE and BLE antenna |
Feature List
|
Indoor Positioning |
Send elderly position information (which room) periodically |
|
Emergency Alarm |
Send alarm message if an elderly stays somewhere for too long |
|
SOS Button |
SOS button is used for emergency alert |
|
Power Saving Mode |
Switch to sleep mode between report intervals |
|
OTA (Over-the-air) |
Firmware can be remotely upgraded |
|
Protocols |
HTTP/TCP/UDP/SMS/MQTT/DNP3 |
