4G CAT-M Asset GPS Tracker with Large Battery
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

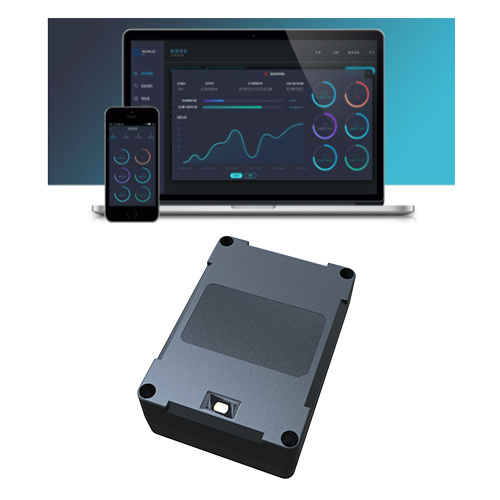

ES420-CAT.M is a 4G (CAT-M) waterproof GPS asset tracker. Carefully designed for long battery life, it can last 5 years under one report per day mode with 7800mAh battery. Embedded with magnets, it can easily attach to vehicle, trailer, container for asset tracking. ES420-CAT.M will automatically switch to cell-ID based location reporting whenever GPS is not available.
Specification
Physical and Electrical
Dimensions: 86mm*62mm*33mm
Weight: 286g
Battery capacity: 7800/10200 mAh
Supply Voltage: 3.3V~4.5V
Power Consumption:
active mode: ＜ 78 mA 3.8VDC
sleep mode: ＜ 4 mAh 3.8VDC
Deep sleep mode:＜ 60 uA 3.8VDC
Operation temperature: -20℃ to 65℃
Storage temperature(Without battery):
-40℃ to 85℃
3 LEDs for charging, GPS and Network; USB2.0
Built-in Cellular and GPS antenna
Charging mode: USB charging
Module: Quectel s BG95
Chipset Type: MDM9206 from Qualcomm
GPS Specification
162dBm Tracking Sensitivity
acurracy (open sky): <2m (CEP50)
Cellular Communication
Cat.M1 & NB1:
LTE-FDD: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B26/B28
LTE-TDD: B39 (for Cat.M1 only)
Output Power: 23dBm±2.7dBm
Protocol: TCP/UDP/SMS
