LTE Cat.4 Personal Tracker with SOS call
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

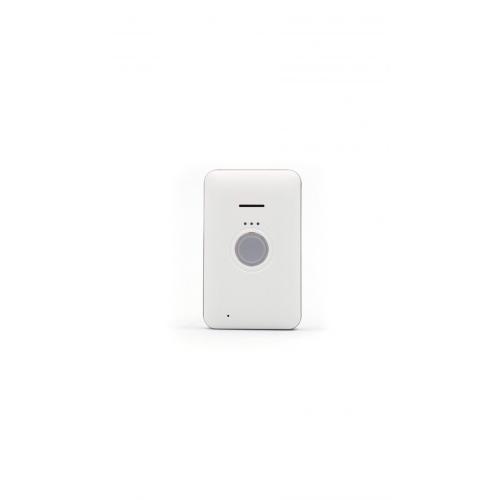

ES820 is an LTE Cat.4 personal GPS tracker with a large battery(1500mAh). It supports two-way communications. Up to 10 phone numbers can be stored for emergency contact. It can also be used for the mileage report for reimbursement purpose.
Certificates:
FCC, TELEC
Specifications
LTE & GSM Specifications
|
Operating Band |
V-Version for Verizon LTE FDD: B4/B13 A-Version for AT&T LTE FDD: B2/B4/B12 J-Version for Japan LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 AU Version for Australia LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 E-Version for European Counties LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
General Specifications
|
Dimensions |
75mm*46mm*17mm |
|
Weight |
60g |
|
Battery Capacity |
1500mAh |
|
Supply Voltage |
3.4V~4.2V (3.8V best) |
|
Power Consumption |
-Active mode:< 129mA@4VDC -Power saving mode:< 3.4mA@4VDC |
|
Operation Temperature |
-20℃ to 65℃ |
|
Storage Temperature |
-20℃ to 65℃ |
|
LTE Module |
Quectel EC25 |
|
Antenna |
Built-in cellular antenna and GPS antenna |
|
Charging Method |
Magnetic charging |
GPS Specifications
|
Sensitivity |
Tracking: -157dBm |
|
Position Accuracy (CEP 50) |
< 2.5m (Open Sky) |
Interfaces
|
Button |
Power on/off button and SOS button |
|
LED Indicators |
3 for GPS, cellular and charging status |
|
Sim Card |
Micro SIM(3FF) |
Feature list
|
Tracking |
Send GPS information to server with configurable report interval |
|
Trip Start and Trip End |
Report trip start and trip end |
|
Mileage Report |
Report mileage for reimbursement purpose |
|
Vibration Mode |
Report location information only when moving is detected |
|
LBS Positioning |
Report cell-ID info when GPS signal is not available |
|
Low Battery Alarm |
Send alarm when battery voltage is low |
|
Storing Messages |
Store messages if out of cellular coverage |
|
Geofence |
Supports multi circle and polygon geofence setting |
|
OTA (Over the Air) |
Firmware can be remotely upgraded |
|
Protocols |
HTTP/TCP/UDP/SMS/MQTT |
