4G CAT-1 Asset Mini GPS Tracker
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |
Product Description
Product Description

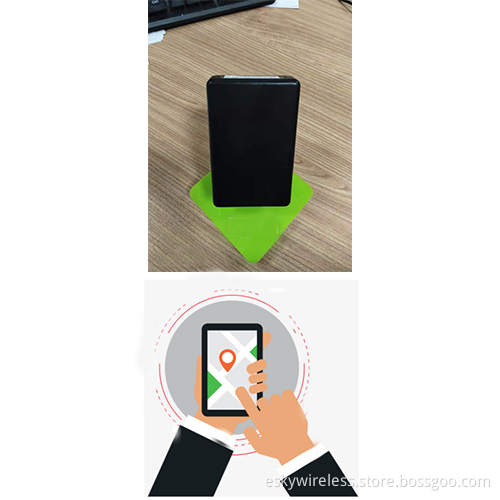

ES431 is a 4G (Cat.1) waterproof GPS asset tracker. Carefully designed for long battery life, this asset GPS Tracker can last 2 year under one report per day mode with 2500mAh battery. Embedded with magnets, the small GPS tracker can easily attach to vehicle, trailer, container for asset tracking. ES431 will automatically switch to cell-ID based location reporting whenever GPS is not available.
|
Physical and Electrical
Dimensions: 80mm*50mm*23mm
Weight: <130g
Rechargeable Battery capacity:
1000/2500 mAh
Power Consumption:
-Active mode:< 78 mA 3.8VDC
-Sleep mode:<4 mA 3.8VDC
-Deep Sleep Mode:< 60 uA 3.8VDC
Operation temperature: -20℃ to 65℃
Storage temperature (Without battery):
-40℃ to 85℃
Charging mode: USB charging
Built-in Cellular and GPS antenna
Module: LongShang
|
GPS Specification
-162 dBm Tracking Sensitivity
Accuracy (Open Sky): <2 m (CEP50)
Cellular Communication
Cat.1:
LTE FDD:B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
GPRS:
900/1800MHz
Protocol:TCP/IP/UDP/MQTT/FTP/HTTP(S)/
COAP/LWM2M
|
