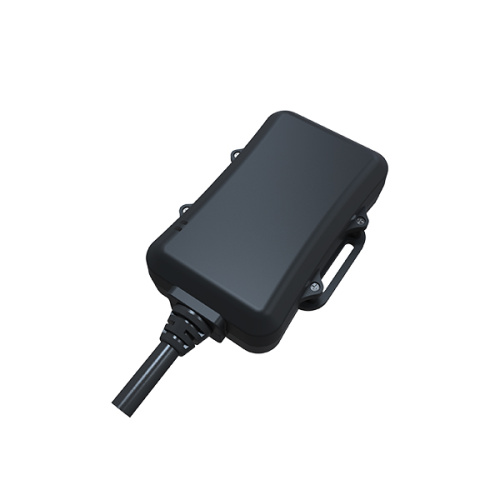

Waterproof Vehicle GPS Tracking Device
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |
Product Description
Product Description
ES400-M2 is a 4G (Cat.M1& NB-IoT) waterproof GPS Tracking device. The GPS Tracker reports information through TCP/UDP And intervals can be pre-configured . The waterproof tracker has max 4 inputs to detect sensors and max 4 outputs to control fuel or starter. The vehicle GPS tracker also has max 3 UARTs to connect external device for transmitting user data to a server. The GPS Tracking device can work in humid environment since it is waterproofed. We can offer free sample for you to test so don't hesitate to contact us.
|
Physical and Electrical Dimensions: *mm *mm *mm Weight: *g Input voltage range: 6-42VDC Power Consumption: - Active mode: 32 mA @12VDC - Sleep mode: 10 mA @12VDC Operation temperature: -20℃ to +65℃ Storage temperature (Without battery): -40℃ to +85℃ Built-in Cellular and GPS antenna Module: BG95 from Quectel Chipset Type: MDM9206 from Qualcomm
-162dBm Tracking Sensitivity Accuracy (Open Sky) :< 2.5m (CEP50) |
Comprehensive IOs Max 4 inputs and 4 outputs Max 2 A/D inputs and 3 UARTs 2 LEDs for GPS and Cellular status
Cat.M1/Cat.NB1: LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28 LTE TDD: B39 (only Cat.M1 support) Output Power: 23dBm±2.7dBm GSM: GSM850/GSM900/DCS1800/PCS1900 Output Power: GSM850/900: 33dBm±2dBm DCS1800/PCS1900: 30dBm±2dBm Protocol: HTTP/TCP/UDP/SMS |
