New Advanced GPS Tracker Standard Module
-
$53.30100-199 Box
-
$50.00200-499 Box
-
$47.50500-999 Box
-
$41.00≥1000 Box
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

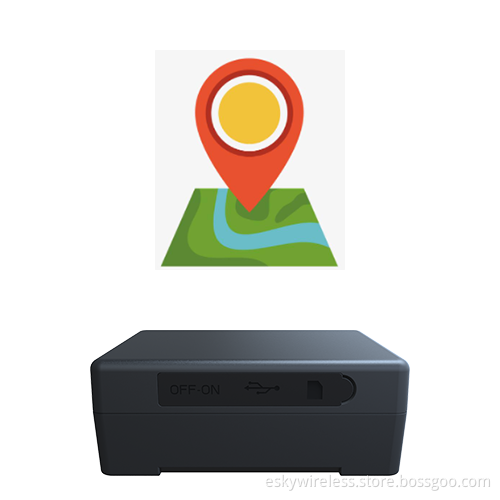

ES420 is 4G Waterproof vehicle GPS Trackers. 4G Waterproof car GPS Trackers were designed for long battery life, 4G IP65 vehicle GPS Tracker can last 5 years under one report per day mode with 7800mAh battery. Embedded with five magnets, 4G IP65 car GPS Tracker can easily be attached to vehicle, trailer, container for asset tracking. ES420 will automatically switch to cell-ID based location reporting whenever GPS is not available.
Specification
Physical and Electrical
Dimensions: 86mm*62mm*33mm
Weight: 286g
Battery capacity: 7800/10200 mAh
Supply Voltage: 3.3V~4.5V
Power Consumption:
-Active mode:< 78 mA 3.8VDC
-Sleep mode:<4 mA 3.8VDC
-Deep Sleep Mode:< 60 uA 3.8VDC
Operation temperature: -20℃ to 65℃
Storage temperature (Without battery):
-40℃ to 85℃
3 LEDs for charging, GPS and Network; USB2.0
Built-in Cellular and GPS antenna
Charging mode: USB charging
Module: Quectel BG95
Chipset Type: MDM9206 from Qualcomm
GPS Specification
-162dBm Tracking Sensitivity
Accuracy OpenSky): <2m (CEP50)
Cellular Communication
Cat.M1 & NB1:
LTE-FDD: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B26/B28
LTE-TDD: B39 (for Cat.M1 only)
Output Power: 23dBm±2.7dBm
Protocol: TCP/UDP/SMS
