4G Cat.M1&NB OBD II GPS Tracker with BLE
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

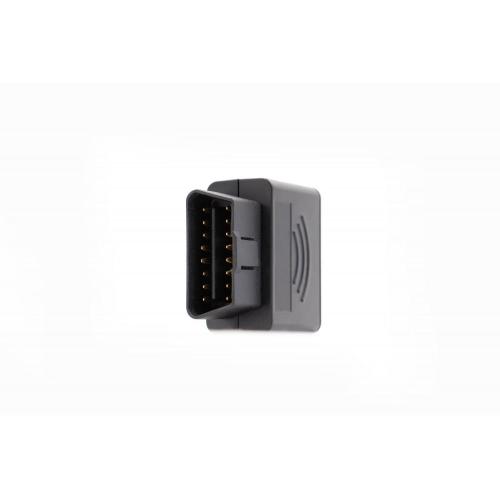

ES840 is OBDII vehicle GPS trackers. 4G OBDII GPS trackers support following communication protocols: SAE J1850 PWM, SAE J1850 VPW, ISO9141-2, ISO14230-4 (KWP2000), and ISO 15765-4. ES840 can read BLE sensors (tire pressure sensor) via its embedded BLE module. 4G OBD2 GPS trackers can read vehicle information such as VIN, RPM, odometer, fuel level, engine oil and coolant temperatures etc.
Specifications
LTE & GSM Specifications
|
Operating Band |
Cat M1/Cat NB: LTE TDD: B39 (only Cat.M1 support) |
|
GSM: GSM850/GSM900/DCS1800/PCS1900 |
General Specifications
|
Dimensions |
50.6mm*49mm*26mm |
|
Weight |
47g |
|
Battery Capacity |
110mAh |
|
Supply Voltage |
6VDC-42VDC |
|
Power Consumption |
-Active mode:< 45mA @12VDC -Sleep mode:< 10mA @12VDC |
|
Operation Temperature |
-20℃ to 65℃ |
|
Storage Temperature |
-40℃ to 85℃ |
|
LTE Module |
Quectel BG96 |
|
BLE Module |
Cypress CYBT-343026-01 |
|
Antenna |
3 built-in antennas for cellular, BLE and GPS |
GPS Specifications
|
Sensitivity |
Tracking: -162dBm |
|
Position Accuracy (CEP 50) |
<2.5m (Open Sky) |
Interfaces
|
J Line |
J1850 PWM VPW |
|
K Line |
ISO9141, ISO14230（KWP2000） |
|
CAN-BUS |
ISO15765（11/29Bit 250/500K） |
|
LED Indicators |
GPS, cellular status, charger |
Feature List
|
Tracking |
Send GPS information to server with configurable report interval |
|
BLE positioning |
Support BLE for positioning |
|
Driving Behavior Detection |
Report harsh braking, harsh acceleration and impact |
|
Intelligent Engine On/Off |
Detect engine on/off via OBD or proprietary detecting method by vibration |
|
Trip Start and Trip End |
Report trip start and trip end |
|
Mileage Report |
Report mileage for reimbursement purpose |
|
Tamper Alert |
Send messages if the power supply is disconnected |
|
Over Speed Limit Alert |
Report over speed limit |
|
Power Saving Mode |
Switch to low-power mode when it detects engine off |
|
Storing Messages |
Store messages if out of cellular coverage |
|
Geofence |
Support multi circle and polygon setting |
|
CAN, K-Line, J-Line communication |
Read VIN, RPM and many other standard vehicle parameters |
|
OTA (Over the Air) |
Firmware can be remotely upgraded |
|
Communication Protocol |
HTTP/TCP/UDP/SMS/MQTT |
