LTE Cat.M1 & NB GPS Trackers
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

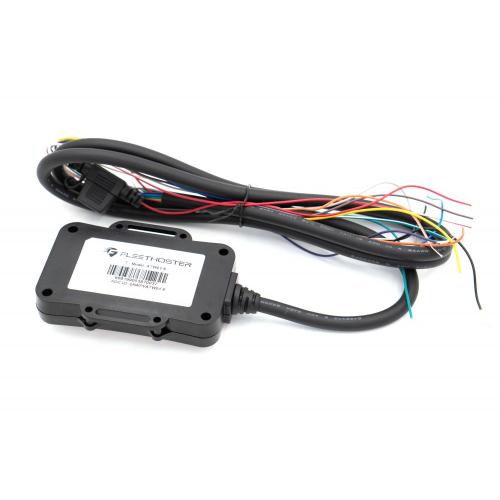

ES811 is a LTE Cat.M1 & NB GPS Tracker for vehicle. It reports location information via TCP/UDP/MQTT with configurable intervals. ES811 has max 4 inputs for various types of sensors, max 4 outputs for enabling/disabling vehicle engine starter, and UART (or RS232C) for communicating with other complicated sensors.
Specifications
LTE & GSM Specifications
|
Operating Band |
Cat M1/Cat NB: LTE TDD: B39 (only Cat.M1 support) |
|
GSM: GSM850/GSM900/DCS1800/PCS1900 |
General Specifications
|
Dimensions |
105mm *65mm *26mm |
|
Weight |
333.8g |
|
Battery Capacity |
300 mAh |
|
Input Voltage Range |
6VDC-42VDC |
|
Power Consumption |
-Active mode:<40 mA@12VDC -Sleep mode:<5 mA@12VDC |
|
Operation Temperature |
-20℃ to 65℃ |
|
Storage Temperature (No battery) |
-40℃ to 85℃ |
|
LTE Module |
Quectel BG96 |
|
Antenna |
Built-in cellular, and GPS |
GPS Specifications
|
Sensitivity |
Tracking: -157dBm |
|
Position Accuracy (CEP 50) |
<2.5m (Open Sky) |
Interfaces
|
Inputs |
4 |
|
Outputs |
4 |
|
A/D |
2 |
|
UART |
1 |
|
RS232C |
1 |
|
Sim Card |
Micro SIM(3FF) |
|
LED Indicators |
2 for GPS and cellular status |
Feature Lists
|
Tracking |
Send GPS information to server with configurable report interval |
|
Driving Behavior Detection |
Report harsh braking, harsh acceleration and impact |
|
Intelligent Engine On/Off |
Detect engine on/off via ignition input or proprietary detecting method by vibration |
|
Trip Start and Trip End Detection |
Report trip start and trip end |
|
Tamper Alert |
Send tamper alert if the power supply is disconnected |
|
Over Speed Limit Alert |
Report over speed limit |
|
Power Saving Mode |
Switch to low-power mode when it detects engine off |
|
Storing Messages |
Store messages if out of cellular coverage |
|
Geofence |
Support circle and polygon geofence setting |
|
Supported Inputs/Outputs |
Support inputs and outputs for ignition detection, door on/off, buzzer, relay, and engine on/off control |
|
Supported Sensors |
Support following sensors: temperature sensor, humility sensor, fuel sensor, flow meter, TDS meter, RFID reader, camera, iButton, Modbus, driver license and so on |
|
OTA (Over the Air) |
Firmware can be remotely upgraded |
|
Communication Protocols |
HTTP/TCP/UDP/SMS/MQTT/DNP3 |
|
Waterproof |
IP66 waterproof |
