Low Cost Asset GPS Trackers with 7800mAh
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

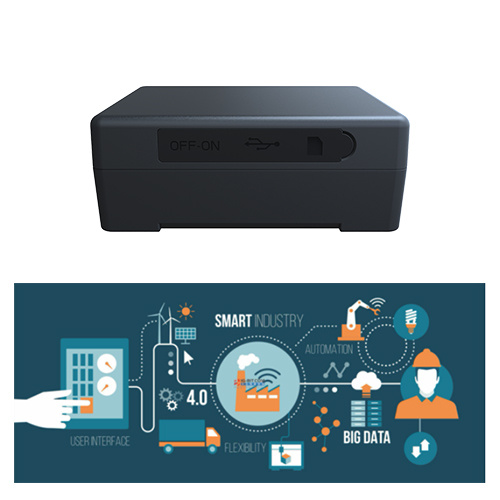

ES420-M2 is a 4G Wireless NB Vehicle GPS Tracker which is specially designed for long time using, with 7800mAh battery the 4G NB Vehicle GPS Tracker can last 5 years under one report per day mode . Embedded with magnets, the cheap 4G GPS Tracker can easily attach to vehicle, trailer, container and so on. The 4G NB Waterproof asset GPS Tracker will automatically switch to cell-ID based location reporting whenever GPS is not available.
Specification
Physical and Electrical
Dimensions: 86mm*62mm*33mm
Weight: 286g
Battery capacity: 7800/10200 mAh
Supply Voltage: 3.3V~4.5V
Power Consumption:
-Active mode:< 78 mA 3.8VDC
-Sleep mode:<4 mA 3.8VDC
-Deep Sleep Mode:< 60 uA 3.8VDC
Operation temperature: -20℃ to 65℃
Storage temperature(Without battery):
-40℃ to 85℃
3 LEDs for charging, GPS and Network; USB2.0
Built-in Cellular and GPS antenna
Charging mode: USB charging
Module: BG95 from Quectel
GPS Specification
-162dBm Tracking Sensitivity
Accuracy （Open Sky): <2m (CEP50)
Cellular Communication
Cat.1:
LTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
GPRS:
900/1800MHz
Protocol: TCP/UDP/ HTTP
