Micro Asset GPS Track Locator Standard Module
  • Micro Asset GPS Track Locator Standard Module
  • Micro Asset GPS Track Locator Standard Module
  • Micro Asset GPS Track Locator Standard Module
  • Micro Asset GPS Track Locator Standard Module
Micro Asset GPS Track Locator Standard Module
Micro Asset GPS Track Locator Standard Module
Micro Asset GPS Track Locator Standard Module
Micro Asset GPS Track Locator Standard Module

Micro Asset GPS Track Locator Standard Module

  • $48.10
    100-199 Box
  • $45.00
    200-499 Box
  • $42.60
    500-999 Box
  • $37.00
    ≥1000 Box
Transportation:
Air, Express
Port:
ShangHai, Shenzhen, HK
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Suzhou city Jiangsu Province China
Productivity: 100000PCS/MONTH
Supply Ability: 100000/month
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CIF,EXW,FCA,Express Delivery
Certificate: FCC/FCA/CTIA/ATT/RSHA
HS Code: 9015800090
Transportation: Air,Express
Port: ShangHai,Shenzhen,HK
Product Description
Product Description

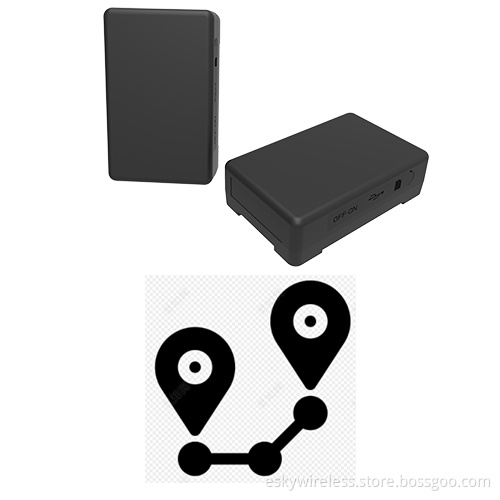

ES430 is a 4G (Cat.M1&NB-IOT) waterproof GPS asset tracker. Carefully designed for long battery life, it can last 2 year under one report per day mode with 2500mAh battery. Embedded with magnets, this asset GPS tracker can easily attach to vehicle, trailer, container for asset tracking. ES430 will automatically switch to cell-ID based location reporting whenever GPS is not available.

The Module we use here is BG95(CAT-M/NB).

Other Features can be customized.

Samples can be offered to test and professional engineers will support your technical questions.

GPS mini trackerasset gps tracker


Physical and      Electrical

Dimensions: 80mm*50mm*23mm

Weight: <130g

Rechargeable Battery capacity:

1000/2500 mAh

Charging mode: USB charging

Built-in Cellular and GPS antenna

Module: BG95 from Quectel

Chipset Type: MDM9206 from Qualcomm


Operation temperature: -20℃ to 65℃

Storage temperature (Without battery):

-40℃ to 85℃



Power Consumption:

active mode: <78 mA @ 3.8 VDC

Sleep mode: < 4 mA @ 3.8 VDC

Deep sleep mode: <60 uA @ 3.8 VDC











GPS Specification

-162 dBm Tracking Sensitivity

Accuracy (Open Sky): <2 m (CEP50)



Cellular Communication

Cat.M1 & NB1:

LTE-FDD: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B26/B28

LTE-TDD: B39 (for Cat.M1 only)

Output Power: 23dBm±2.7dBm

GSM:

GSM850/GSM900/DCS1800/PCS1900

Output Power:

GSM850/900: 33dBm±2dBm

DCS1800/PCS1900: 30dBm±2dBm

Protocol: TCP/UDP/SMS



Charging mode: USB charging

Built-in Cellular and GPS antenna

Module: BG95 from Quectel

Chipset Type: MDM9206 from Qualcomm
