Newest 4G Asset GPS Tracker Standard Module
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA/Verizon/T-Mobile |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

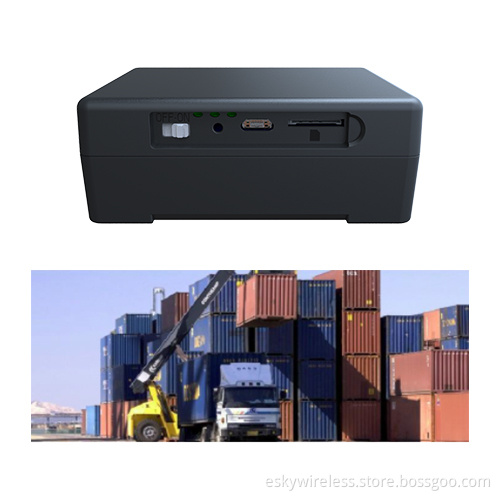

ES420 is a 4G (Cat-M1 & NB-IoT) waterproof GPS asset tracker. Carefully designed for long battery life, waterproof GPS Tracker can last 5 years under one report per day mode with 7800mAh battery. Embedded with magnets, this GPS Asset Tracker can easily attach to vehicle, trailer, container for asset tracking. ES420 will automatically switch to cell-ID based location reporting whenever GPS is not available. If you are looking for Waterproof Asset Trackers, Smart Asset Gps Track Device, Smart Gps Asset Track Device, Smart Gps Asset Track and waterproof asset tracker. this is it.
|
Physical and Electrical Dimensions: 86mm*62mm*33mm Weight: 286g Battery capacity: 7800/10200 m A h Supply Voltage: 3.3V~4.5V Power Consumption: -Active mode:< 78 mA 3.8VDC -Sleep mode:<4 mA 3.8VDC -Deep Sleep Mode:< 60 u A 3.8VDC Operation temperature: -20℃ to 65℃Storage temperature(Without battery): -40℃ to 85℃ 3 LEDs for charging, GPS and Network; USB2.0 |
Built-in Cellular and GPS antenna Charging mode: USB charging Module: Quectel s BG95 Chipset Type: MDM9206 from Qualcomm GPS Specification -162dBm Tracking Sensitivity Accuracy （Open Sky): <2m (CEP50) Cellular Communication Cat.M1 & NB1: LTE-FDD: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B26/B28 LTE-TDD: B39 (for Cat.M1 only) Output Power: 23dBm±2.7dBm Protocol: TCP/UDP/SMS |
