Newest GPS Vehicle Tracker Standard Module
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

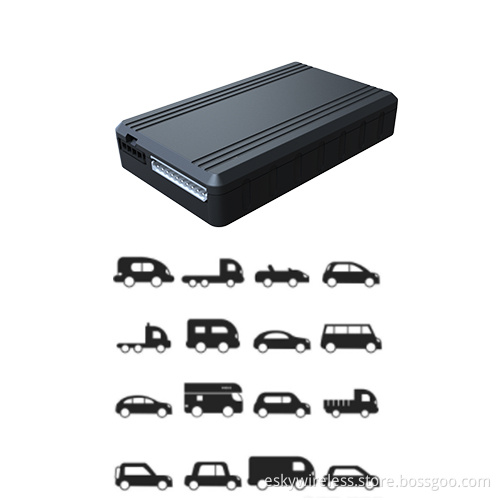

ES412 is a 4G Newest Car GPS Tracker. the wireless GPS Tracker reports location information via TCP/UDP with configurable intervals. Newest Vehicle GPS TrackerES412 has max 4 inputs which can be used to detect sensors and max 4 outputs to control fuel or the vehicle starter. the Newest Cat-1 Vehicle Trackers also has max 3 UARTs to connect an external device to transmit user data to a server. Standard Vehicle Trackers, GPS Vehicle Wireless Tracker, Vehicle Wireless GPS Tracker, Wireless GPS Track Locator and cheap GPS Tracker, this is what can meet your expectation.
Samples can be offered to test and professional engineers will support your technical questions.
|
Physical and Electrical Dimensions: 90mm *55mm *18mm Weight: 65g Input voltage range: 6-42VDC Power Consumption: - Active mode: 32 mA @12VDC - Sleep mode: 10 mA @12VDC Operation temperature: -20℃ to +65℃ Storage temperature (Without battery): -40℃ to +85℃ Built-in Cellular and GPS antenna Module: SIMCOM GPS specification -162dBm Tracking Sensitivity Accuracy (Open Sky): < 2.5m (CEP50) |
Comprehensive IOs Max 4 inputs and 4 outputs Max 2 A/D inputs and 3 UARTs 2 LEDs for GPS and Cellular status Cellular Communication Cat.1: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B34/B38/B39/B40/B41 GSM: EGSM900mhZ/DCS1800MHz Protocol: HTTP/TCP/UDP/SMS |
