Newest GPS Car Tracker
- Transportation:
- Air, Express
- Port:
- ShangHai, Shenzhen, HK
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou city Jiangsu Province China |
|---|---|
| Productivity: | 100000PCS/MONTH |
| Supply Ability: | 100000/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Certificate: | FCC/FCA/CTIA/ATT/RSHA |
| HS Code: | 9015800090 |
| Transportation: | Air,Express |
| Port: | ShangHai,Shenzhen,HK |

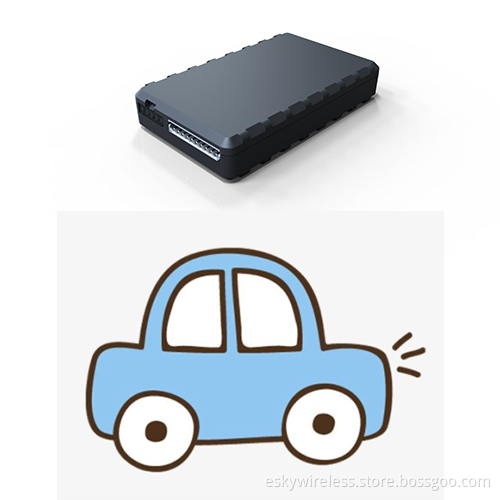

ES412 is a 4G New Gps Tracker for vehicle. The Latest Gps Tracker reports location information via TCP/UDP with configurable intervals. ES412 has max 4 inputs which can be used to detect sensors and max 4 outputs to control fuel or the vehicle starter. This 4G Newest Gps Trackeralso has max 3 UARTs to connect an external device to transmit user data to a server.
Samples can be offered to test and professional engineers will support your technical questions.
|
Physical and Electrical Dimensions: 90mm *55mm *18mm Weight: 65g Input voltage range: 6-42VDC Power Consumption: - Active mode: 32 mA @12VDC - Sleep mode: 10 mA @12VDC Operation temperature: -20℃ to +65℃ Storage temperature (Without battery): -40℃ to +85℃ Built-in Cellular and GPS antenna Module: SIMCOM GPS specification -162dBm Tracking Sensitivity Accuracy (Open Sky): < 2.5m (CEP50) |
Comprehensive IOs Max 4 inputs and 4 outputs Max 2 A/D inputs and 3 UARTs 2 LEDs for GPS and Cellular status Cellular Communication Cat.1: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B34/B38/B39/B40/B41 GSM: EGSM900mhZ/DCS1800MHz Protocol: HTTP/TCP/UDP/SMS |
