Automatic Wire Mesh Sheet Cutting Machine

Automatic Wire Mesh Sheet Cutting Machine

$590.00

1-5 Piece/Pieces
$550.00

≥6 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100pcs/month
Supply Ability:	100pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	84411000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

Automatic Wire Mesh Sheet Cutting Machine

Flying Man auto wire mesh roll to sheet cutting machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism. This auto paper sheeter has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.

Paper Sheet Cutter

Product Parameters

Fully automatic roll to sheet cutting machine
Model	FMHZ-100	Feeding motor	86 stepper motor
Cutting length	0.1 mm-9999.9 mm	Cutting motor	40w AC gear motor
Cutting Width	0 - 90 mm
Feeding speed	Adjustable	Feed roller	PUR or Silicone （Choose the right roller according to the material）
Power	0.3 kw	Cutter material	High speed steel or Art knife (choose the right knife according to the material)
Voltage	110 v or 220 v
Machine Weight	29 kgs
Machine size	400 x 350 x 390 mm

Performance Feature

Advantages & Features

- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.

Special cutting tools

Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

Core technology

Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.

Timing, quantitative and fixed speed

The length and speed can be adjusted continuously to achieve high efficiency.
Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.

Set up automatic group accumulator and total accumulator count.

Numerical control display device

This machine adopts microcomputer numerical control display device, cutting length/quantity and feeding speed can be set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise and fall. With thimble type feeding mechanism, it can be fast feeding.

86 stepper motor

86 stepper motor ensure precise feeding, strong power, fast heat dissipation, speed, step length accurate control. And also ensure smooth/high precision cutting material with short time.

Save time and effort and materials.

Product Application

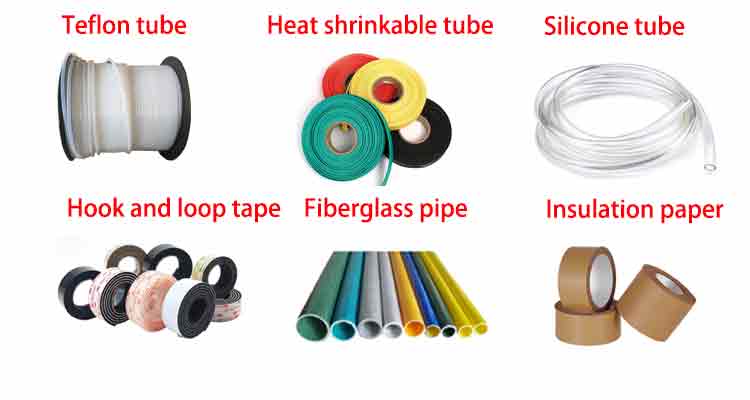

Flying Man automatic cutting machine is suitable to cut paper, film, heat shrinkable tube, glass fiber tubes, yellow wax tube, Velcro, nickel belt and so on (so also called: heat shrinkable tube cutting machine, glass fiber pipe cutting machine, yellow wax cutting machine, Velcro cutting machine, nickel belt cutting machine, computer cutting machine, automatic cutting machine, etc.) With the small body, it doesn't take up space and can increase production.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).
